Small Capsule Slip Rings 6 Circuit 2A IP40 300RPM Gold To Gold
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Speed | 0~300rpm | Ciruits Total | 6CKT |
|---|---|---|---|
| Protection Grade | IP40 | Material | RoHS Compliant |
| Type | Mini Slip Ring | Application | Rolling Machine,Amusement Equipment |
| Dynamic Resistance Fluctuation Balue | ≤35mΩ | ||
| High Light | 110VAC Small Capsule Slip Rings,110VDC Capsule Slip Rings,110VDC Small Slip Rings |
||
Product Description
110VAC Small Capsule Slip Rings 6 Circuit 2A IP40 300RPM Gold To Gold

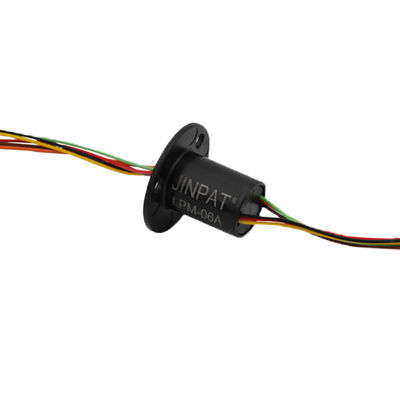

LPM-06A Miniature Capsule Slip Rings
The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~300rpm |
| Detail |
6X1A(You can go through 2A under certain circumstances ) |
Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength |
≥200VAC@50Hz(P) ≥100VAC@50Hz(S) |
Lead Wire Length |
Stator: 250士5mm Rotor: 250士5mm |
|
| Insulation Resistance |
≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S) |
Dynamic Resistance Fluctuation Balue |
≤35mΩ | |
| 35mEnvironment | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-06A -Outline Drawing
