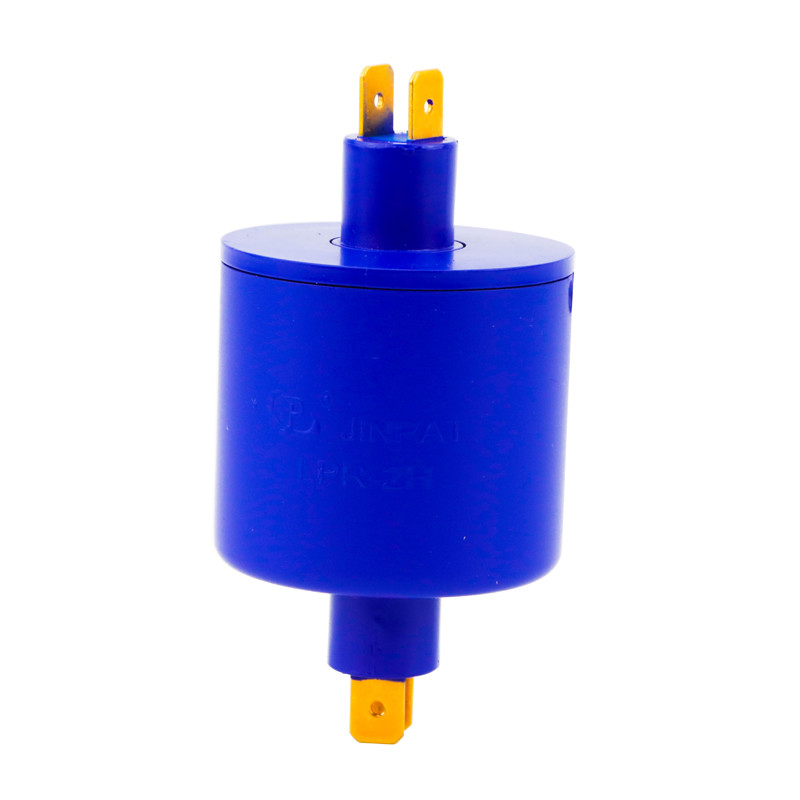

Silver Plated Pin 240VAC Rotary Slip Ring advanced slip ring technology

Silver plated pin 240VAC Rotary Slip Ring advanced slip ring technology

Description

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It can improve system performance by short-cutting operations and eliminate damage bound to wires twining from movable joints.

LPR-2H Series slip ring provides routing space for hydraulics, pneumatics or a concentric shaft mount.

The LPR-2H uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. Moreover, fiber brushes do not demand lubrication and produce actually no wear debris.

Features

• No mercury, environment-friendly design
• Pins connector, convenient for installation
• Speed up to 300 rpm continuously
• Steel bearings and machined shaft and housing for harsh environment
• Collar mounting is standard; flange mounting is optional
• Continuous 360°rotary transmission of power or data signals
• Silver plated rings are standard. Gold plated optionally.
• Various lead exits are available
• Sealed unit

Advantages

• Fiber brush technology provides maintenance-free operation (no lubrication required)
• Modular design meets special requirements through off-the-shelf manufacturing techniques
•    Customized configurations for your application
•    High protection
•    Smooth Running

Main Applications

• Electrical test equipment
• Manufacturing and process control equipment
• Indexing tables.
• CCTV pan
• Robotics, rotary sensors
• Medical equipment
• Urgent illume equipment

Options

•  Placement of custom circuitry directly onto the unit
•  Custom mechanical integration features
•  Addition of special components
•  The inclusion of coax and miniature data bus cables

​

Dimension

Product Display

Application Picture

Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.

It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.

FQA

What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
