4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-04A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Speed 0-300 Rpm Number Of Circuits 4
Voltage 240 VAC/DC Current Rating 2 Amps Per Circuit
Contact Material Gold To Gold Application CCTV Pan
High Light

compact slip ring


mini slip ring

Product Description

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance


Quick detail


The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.


The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.



  • Gold to gold ensures over-long working life
  • Low contact resistance
  • Compatible with data bus protocols
  • Compact design
  • Smooth running
  • Low torque


  • 4 circuits
  • 2 amps per circuit, 240 VAC/DC
  • Precision assembly to provide exceptional rotational life
  • Speed up to 300 rpm continuous
  • Gold-Gold contacts
  • Flexible, color-coded, silver-plated stranded copper lead wire
  • Superior handling of low-level control signals
  • Metal housing optional

Main Application

  • Electrical Test Equipment
  • Manufacturing and Processing Control Equipment
  • Indexing Tables.
  • CCTV Pan / Tilt Camera Mounts
  • Robotics, Rotary Sensors, Urgent Illumination Equipment
  • Exhibit/Display Equipment.
  • Aviation, Military Instrument, Medical Equipment
  • Mini-type Coiling Machine
  • Closed-circuit Control



Operating Speed 0-300 rpm
Circuits 4
Voltage 240 VAC/DC
Rated Current  2 amps per circuit
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩ Min
Capsule Length =L
# of Circuits


Outline dimension


4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance 0

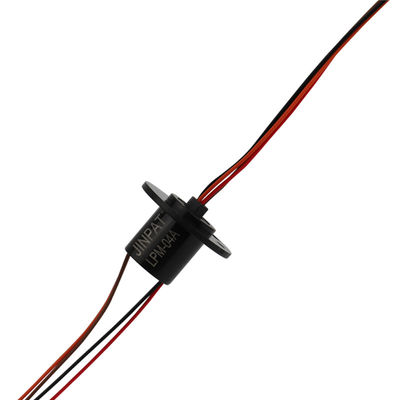

Product display

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance 1


Product application(LED Advertisement Board)


4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance 2


Frequently Asked Questions


What is JINPAT?
We are a leading manufacturer specializing in producing slip rings of many types in the application.


What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.

How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.

How is the production capacity?
The factory area is more than 50,000 square feet, which includes advanced production line, R&D center, and Testing Laboratory.
We offer the standard model and customized solutions for various application. The factory is equipped with advanced testing facilities.


What is the advantage of JINPAT?
We offer flexible solutions for different customers with prompt delivery.


Why choose JINPAT product?
We are an ISO9001 certified company with a stringent quality control system.
- Most of our test equipment is highly advanced.
- Long service life.
- We offer competitive price with reliability.




The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
