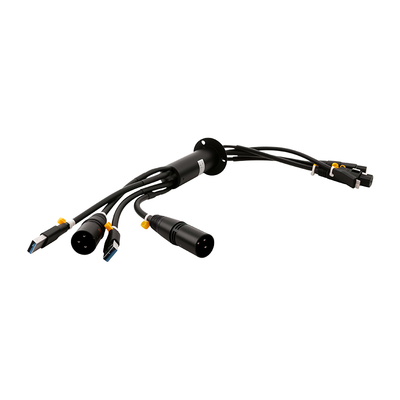

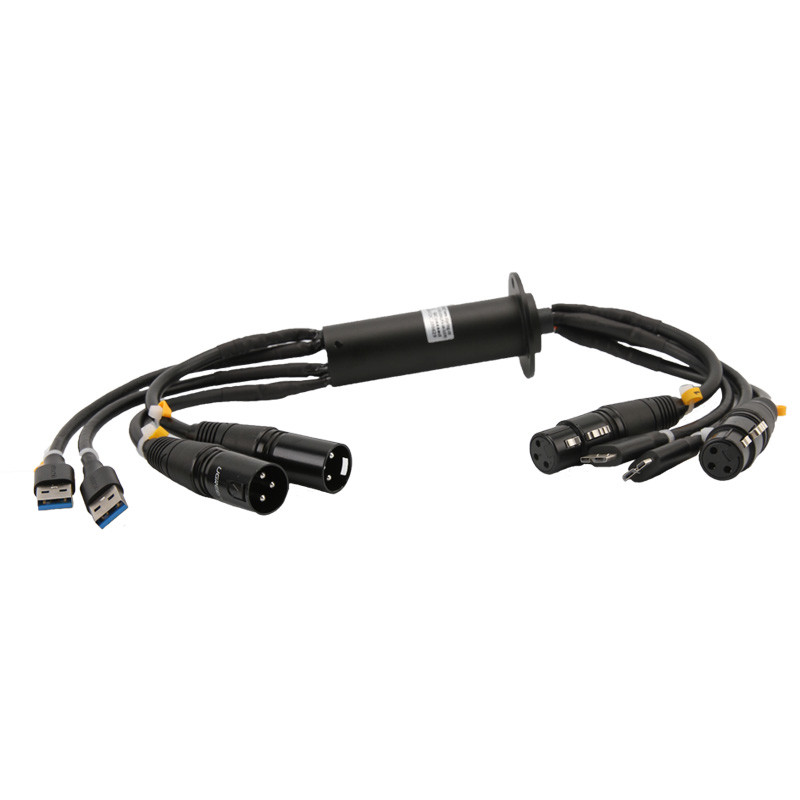

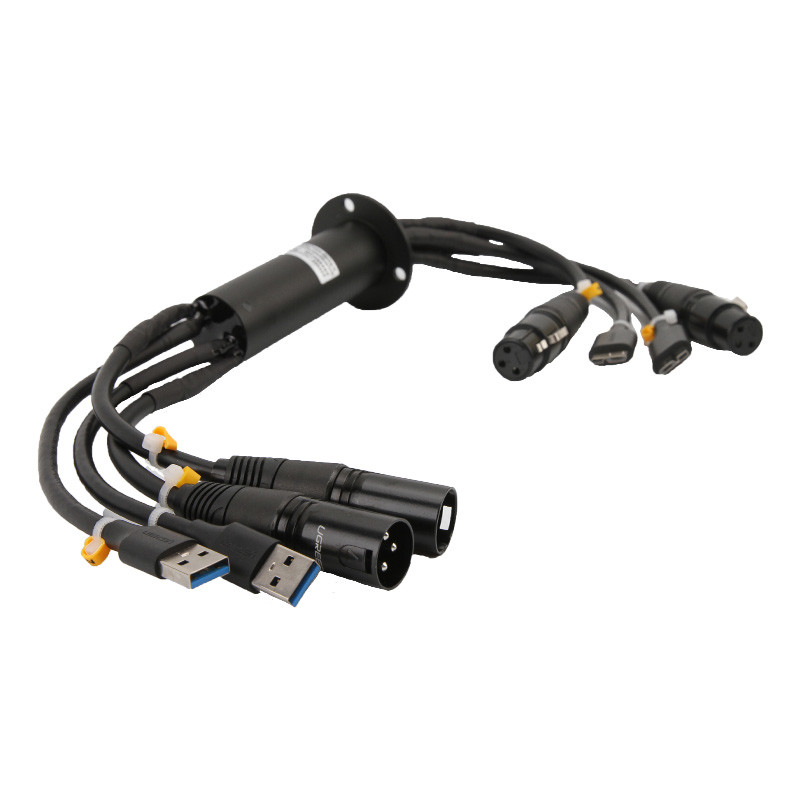

36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission

  • 36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
  • 36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
  • 36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
  • 36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-12T-02U3-HD02
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T,C/C,Paypal
Supply Ability 500 pieces/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 36 CKT（2 Circuits*USB3.0/2 Circuits Video Signal） Rating Voltage 0-5VAC/DC
Rotating Speed 0~60rpm Lead Wire Size USB 3.0/Microphone Lead
Dynamic Resistance Fluctuation Value 35MΩ Contact Material Gold To Gold
Housing Material Aluminum Alloy
Highlight

60rpm Signal Slip Ring

,

HDMI Signal Slip Ring

,

Good Adaptability Signal Slip Ring
Product Description
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
Product Specifications
Attribute Value
Circuits 36 CKT (2 circuits*USB3.0/2 circuits video signal)
Rating Voltage 0-5VAC/DC
Rotating Speed 0~60rpm
Lead Wire Size USB 3.0/Microphone lead
Dynamic Resistance Fluctuation Value 35MΩ
Contact Material Gold To Gold
Housing Material Aluminum Alloy
Product Description

The LPC-12T-02U3-HD02 is a high-definition signal slip ring featuring advanced design and manufacturing technology. This innovative solution is specifically engineered for video surveillance applications requiring 360° continuous rotation while transmitting HD video and other signals. Certified by ISO9001:2008, ISO14001:2015, and UL standards, it delivers exceptional quality and reliability.

Key Features & Advantages
  • Simultaneous transmission of HD video, USB, power, and common signals
  • Stable HDMI video signal transmission verified through rigorous testing
  • Compact and lightweight design
  • Continuous operation without interruption or data loss
  • Vibration resistant with IP66 high protection level
  • Watertight construction for demanding environments
  • Extended service life with gold-to-gold contact material
Electronic & Electrical
Circuits Total 36 CKT
Circuit Details 2 circuits*USB3.0/2 circuits video signal
Rating Voltage 0-5VAC/DC
Dielectric Strength ≥100VAC@50Hz
Insulation Resistance ≥10MΩ@100VDC
Mechanical
Working Speed 0~60rpm
Contact Material Gold to Gold
Housing Material Aluminum Alloy
Lead Wire Length Stator: 250±10mm
Rotor: 250±10mm
Dynamic Resistance Fluctuation Value 35MΩ
Environment
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP Rating IP40
Remarks
Application Video surveillance systems
Note "P" stands for power, "S" stands for signal
Outline Drawing
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission 0
JINPAT USB Slip Rings Advantages
  • High-speed transmission with USB 3.0 theoretical rate up to 5.0Gbps (measured >2.0Gbps)
  • Flexible options: electrical transmission or electro-optical transmission
  • High channel capacity: supports up to 2 USB3.0 and 12 USB2.0 channels
  • Premium contact materials ensure low electrical noise and extended service life
  • Multiple connector options available

For more details about this slip ring product, please contact JINPAT. We provide customized solutions to meet your specific requirements.
