| Number Of Circuits: | 6 | Voltage: | 240 VAC/DC |
|---|---|---|---|
| Current Rating: | 2 Amps Per Circuit | Contact Material: | Gold To Gold |
| Operating Speed: | 0-300 Rpm | Electrical Noise: | 1mΩMin |
| High Light: | mini slip ring,small slip ring |
||

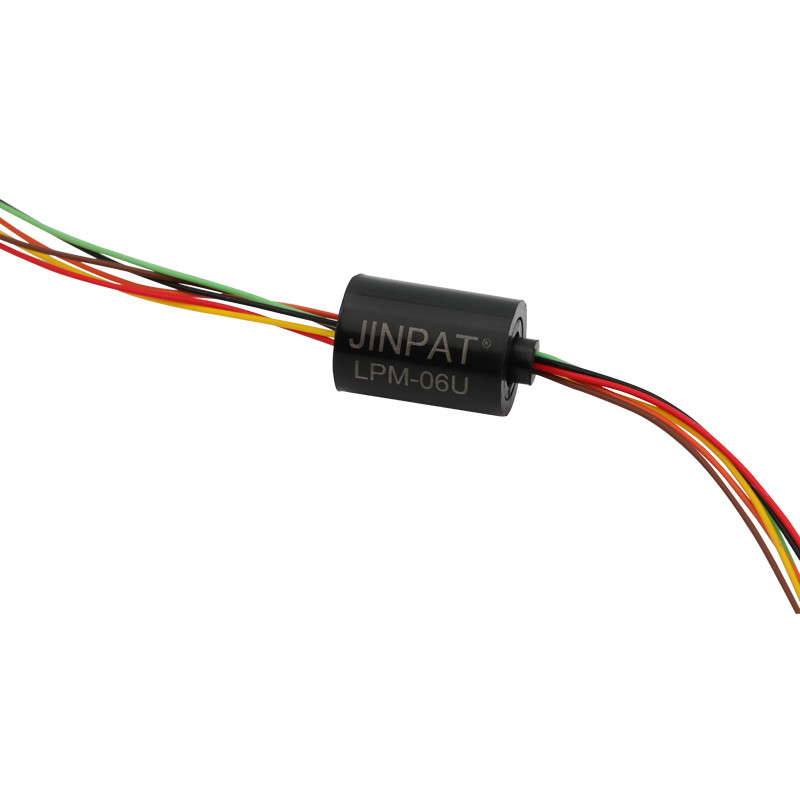

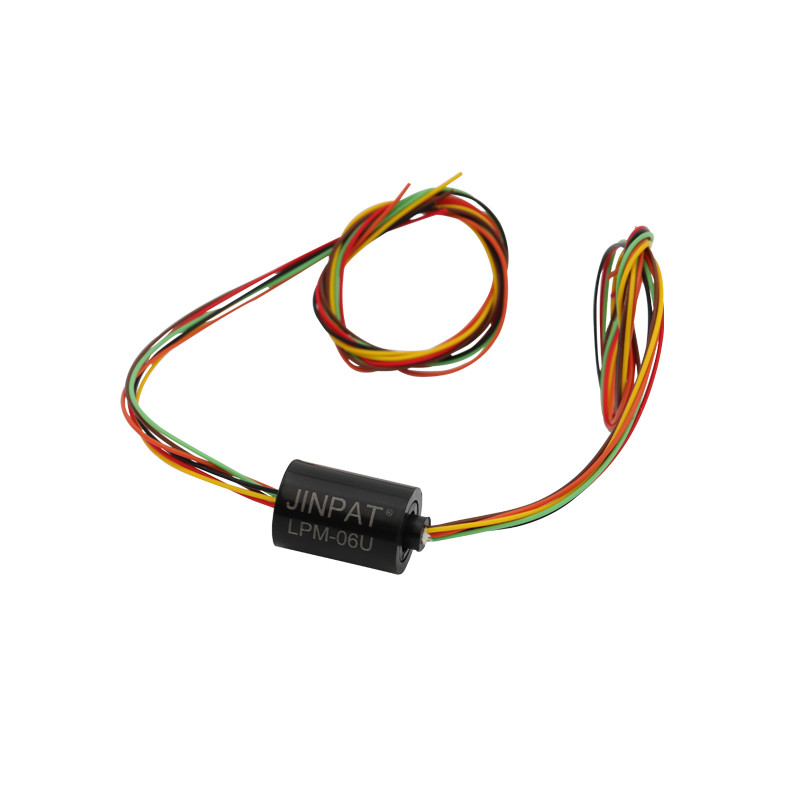

6 Circuits Model Miniature Slip Ring in Compact Design with Gold-Gold Contacts
Description
Jinpat miniature slip rings are ideal for crucial applications where signals and power need to be transmitted in a compact size. Also called rotary electrical connectors or rotary electrical joints, our miniature slip rings are available in a range of diameters, from 12.5-16.0mm and with circuit counts up to 30 circuits as standard.
Outline drawing
Features
◆ 6 circuits models
◆ 2 amps per circuit, 240VAC/DC
◆ Precision assembly to provide exceptional rotational life
◆ Speed up to 300 rpm continuous
◆ Gold-Gold contacts
◆ Flexible, color-coded, silver-plated lead wires
◆ Superior handling of low-level control signals
◆ Metal housing optional
Advantage
◆ Low torque minimizes system torque budget
◆ Compact design to fit into the most demanding space.
◆ Smooth running
◆ Low electrical noise
◆ Quick shipment per your urgent requirement
◆ 360°continuous rotation
◆ Addition of special components
Main Application
◆ Electrical test equipment
◆ Manufacturing and process control equipment
◆ Indexing tables.
◆ CCTV pan / tilt camera mounts
◆ Robotics, rotary sensors, urgent illumination equipment
◆ Exhibit/display equipment.
◆ Aviation, military, instrument, medical equipment
◆ Mini-type wire-rolling machine
◆ Closed-circuit control
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
