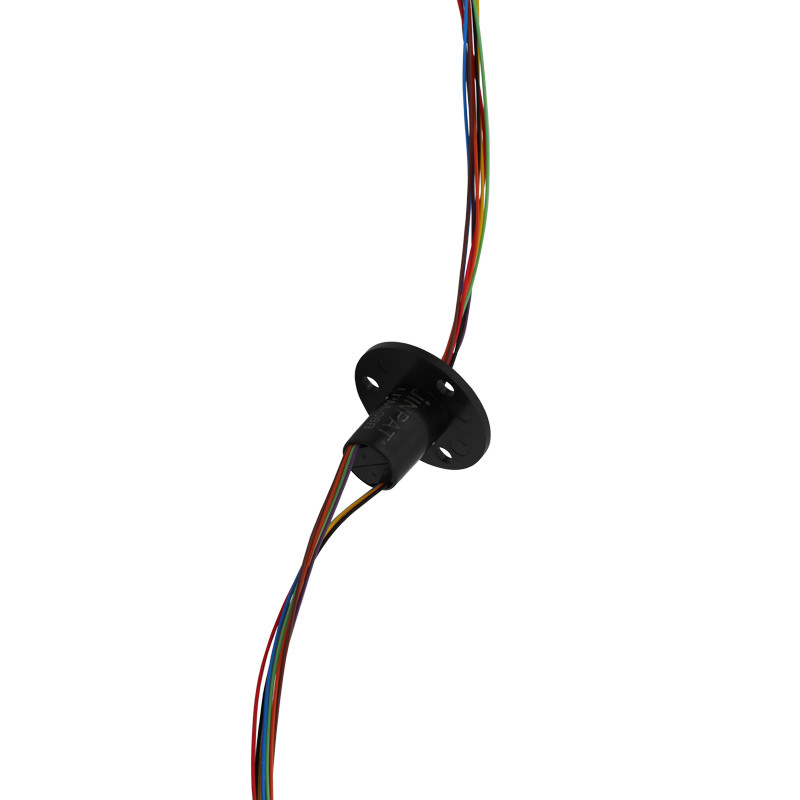

Compact Slip Ring 8 Circuits Model JINPAT Micro cap slip ring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 8 | Operating Speed | 0-300 Rpm |
|---|---|---|---|
| Voltage | 240 VAC/DC | Current Rating | 2 Amps Per Circuit |
| Contact Material | Gold To Gold | Housing Material | Engineering Plastic |
| Electrical Noise | 1mΩMin | ||
| Highlight | compact slip ring,mini slip ring,8 Circuits Compact Slip Ring |
||
Product Description
Compact 8 Circuits Model LPM-08B Gold-Gold Contacts Application JINPAT Micro cap slip ring
LPM-08B Description
This unit is applied to small and medium-sized equipment where transmit signals, video signals, such as high-speed dome, children intelligent toys, stage lights, UAV, robots and so on.
The LPM-08B miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPM-08B allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Lengths | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
| Housing Material | Engineering plastic |

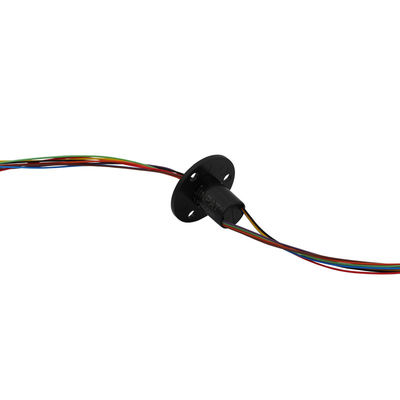

Product Display
