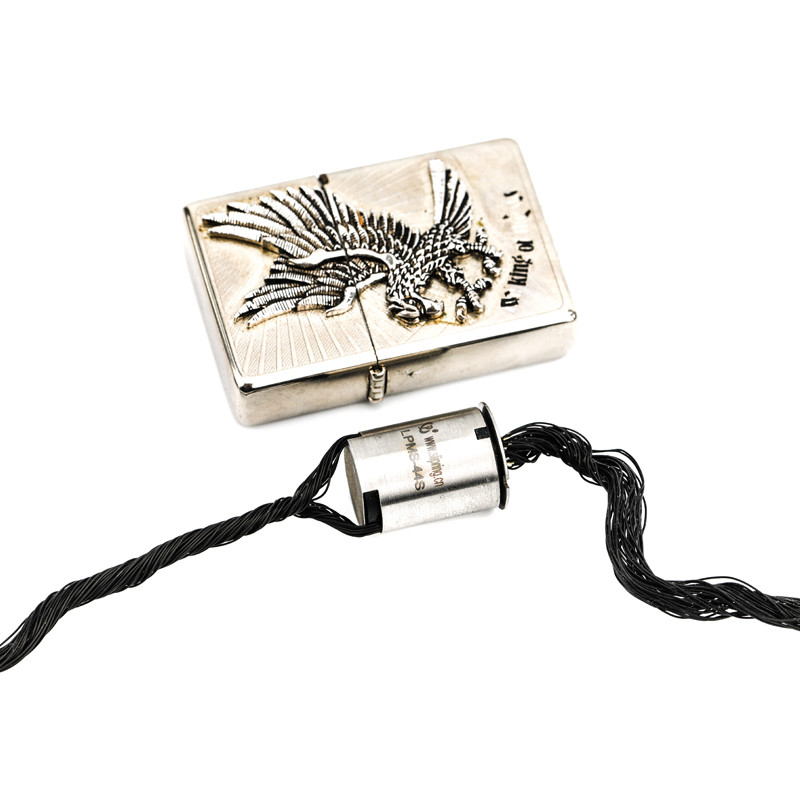

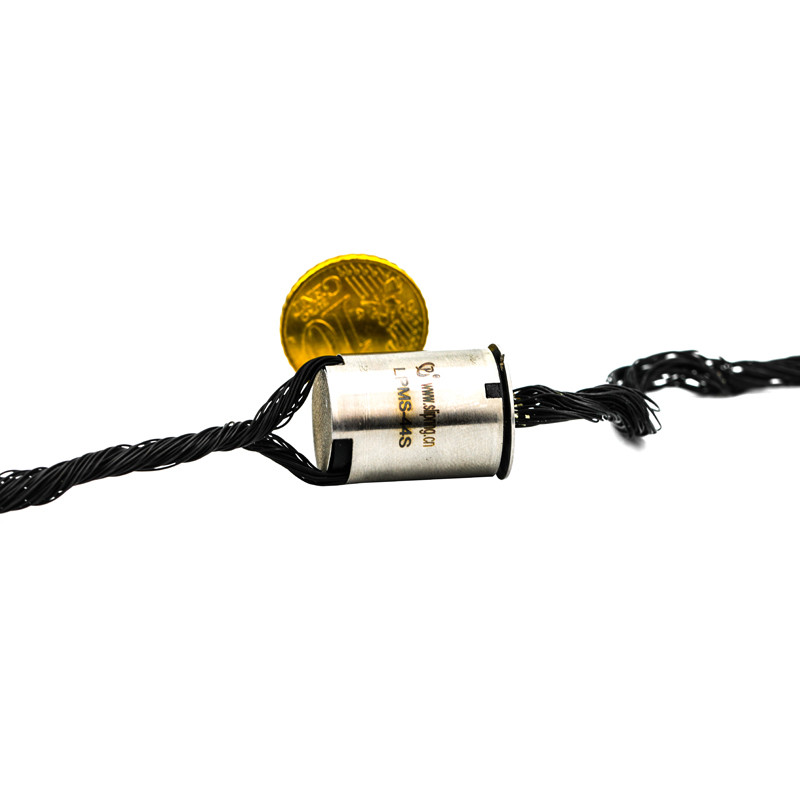

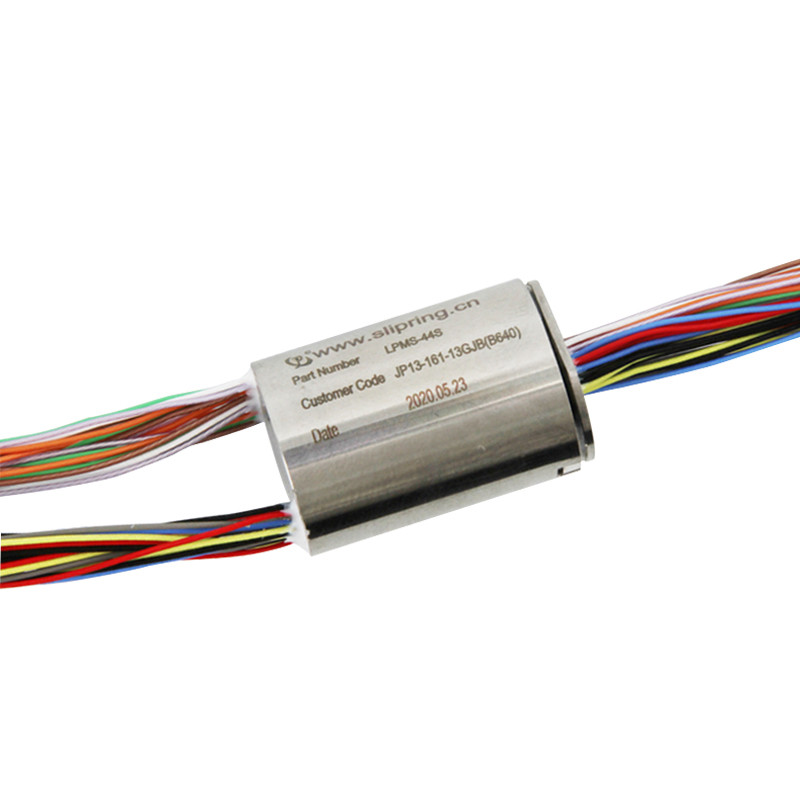

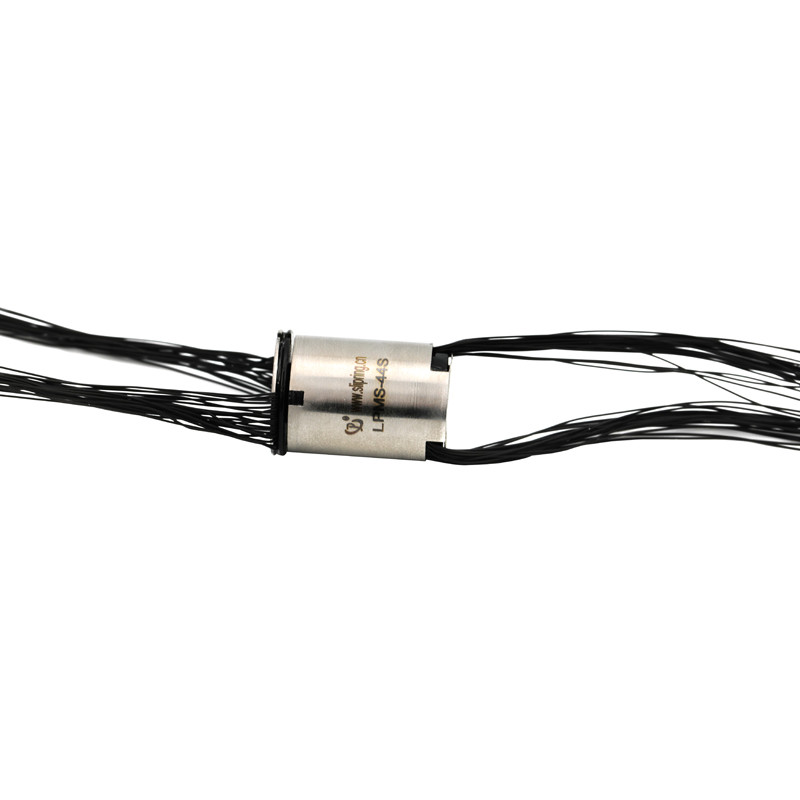

Mniature Slip Ring Connector 44 Circuits LPMS-44S
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 44 | Contact Material | Gold To Gold |
|---|---|---|---|
| Current Rating | 1A | Voltage | 48 VAC/DC |
| Housing Material | Stainless Steel | Electrical Noise | 35mΩ Min |
| High Light | compact slip ring,mini slip ring |
||
Product Description
44 Circuits Slip Ring with Only 21mm Length and Low Electrical Noise for Camera Stabilizer
LPMS-44S Slip Ring Description
The LPMS-44s super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor.
The LPMS-44s allows tremendous flexibility in dealing with system size restriction when larger versions are not an option.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Circuits | 44 |
| Voltage | 48 VAC/DC |
| Rated Current | 1 amp per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact | Gold to Gold |
| Lead Size | 36# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥100 VAC @50Hz, between each circuit |
| Insulation Resistance | 10 MΩ @ 100 VDC |
| Electrical Noise | ≤35mΩ Min |
| Housing | Stainless steel |
LPMS-44S Slip Ring Application Picture
Company introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
