4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise

  • 4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number JP06-020-03
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 4 Working Voltage Rating 240 VAC
Contact Material Gold To Gold Other Application Display Equipment.
One Application Robotics Palletizing Machines Two Application Closed-circuit Control
Lead Length Lead Wire Of Stator 60mm
High Light

mini slip ring

,

small slip ring
Product Description

4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise



JP06-020-03 Slip Ring Description



This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.



Compact slip rings may have a lot of channels in a very compact size. Compact slip rings are ideal for video and digital signals. Typical use applications are video systems (CCTV), robotics, cable reels, medical equipment and packaging machines.



JP06-020-03 is suitable for all kinds of design of lightweight, compact space, high-quality stainless steel shell material, suitable for all kinds of the bad working environment; high-quality gold plated ring, to ensure the reliability of power supply and signal transmission.



This series has been designed keeping flexibility, cost-effectiveness, and reliability in mind.



Specifications
Operating Speed 0-10 rpm
Number of Circuits 4
Voltage 240 VAC
Current Rating 4 circuit*2A,2 circuit*shield
Temperature Range -10℃ to +70℃
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Lead wire of stator 60mm
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩ Min
Housing Material Engineering plastic or metal

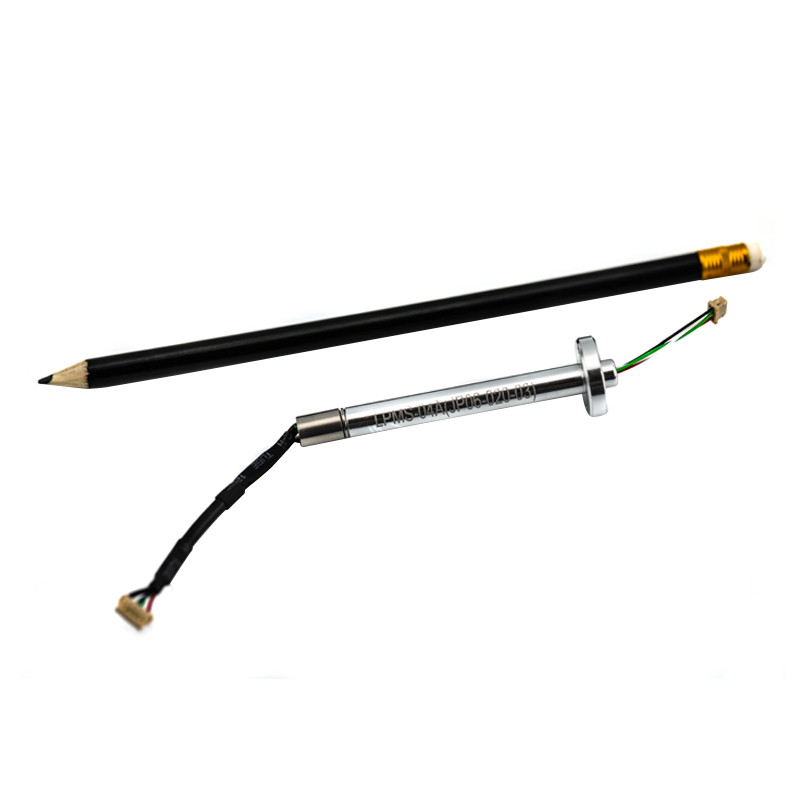

JP06-020-03 Slip Ring Product Display

4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise 0



Application picture



4 Circuits Super Miniature Slip Ring 1mΩ Low Electrical Noise 1



Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
