Capsule Slip Ring Long Life 10 Circuits

  • Capsule Slip Ring Long Life 10 Circuits
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-10S
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 10 Voltage Rating 7V AC/DC
Contact Material Gold To Gold IP Grade IP54
ServiceLife ≥100 Million Revolutions
High Light

compact slip ring

,

small slip ring
Product Description

10 Circuits Capsule Slip Ring with 100 Million Revolutions Long Life Transferring Signals



Description



The LPC-10S part is a 10ckt capsule slip ring that transfer signals inclding power signal and LVDS. It adapts to a working temperature of -10~+80 ℃. Such a slip ring enjoy a gold-to-gold contact and alluminum alloy housing. Motre importantly, it has a long service life up to 100 million turns.



Specification



Circuit  10 circuits * signal
Voltage Rating 7V AC/DC
Working Speed  0~300 rpm
Contact  Gold-to-Gold
Housing   Aluminum Alloy
Wire Size   AWG28# silver plated copper Te
Wire Length   Stator: 250±5mm, Rotor:250±5mm
Working Temperature  -10~+80℃
Humidity   ≤60%RH
IP   IP54
Life   ≥ 100 million turns

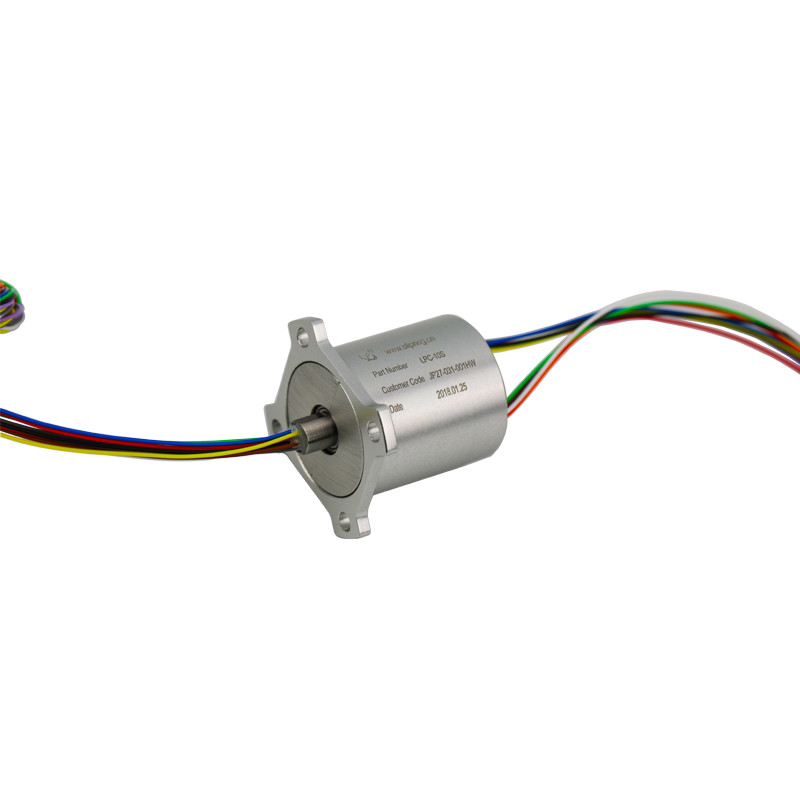

Product Picture

Capsule Slip Ring Long Life 10 Circuits 0





Outline Drawing



Capsule Slip Ring Long Life 10 Circuits 1








Company Dispaly



Capsule Slip Ring Long Life 10 Circuits 2


Company introduction


To date, JINPAT has evolved itself as one of the most renowned slip ring manufacturer in the world from a small business providing electrical connector for automation industry.



Specializing in slip ring design for dozens of years, we has designed and manufactured various slip rings applied to many fields, including industrial machinery, surveillance and radar systems, automation, artificial intelligence, aircraft, medical devices, marine equipment, and defense, etc.
