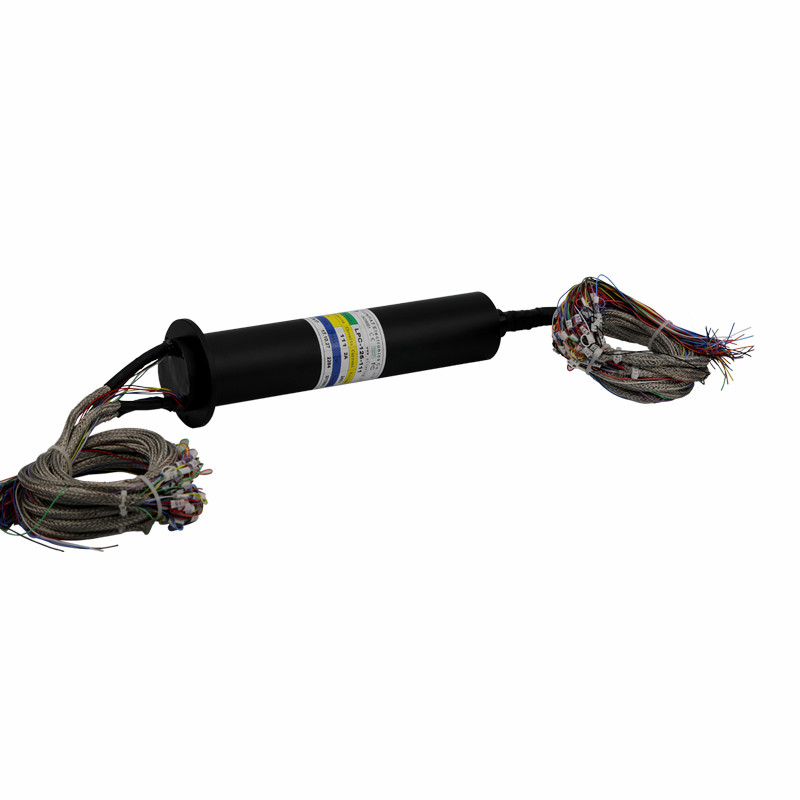

Rotating Capsule Slip Ring 110 Circuits
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 110 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Speed | 100 Rpm | Contact Material | Precious Metal |
| Working Temperature | -20~+60℃ | ||
| High Light | compact slip ring,mini slip ring |
||
Product Description
110 Circuits Rotating Capsule Slip Ring In Compact Design Working in 90%RH Humidity
Description
The LPC-125-111 capsule slip ring is a unit that uses precious metal contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating one. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
Specification
| Circuits | 110circuits * 2A |
| Working Voltage | 240 VAC/DC |
| Dielectric Strength | Between circuits≥500V@50Hz |
| Insulation | 100MΩ@100VDC |
| Electrical Noise | ≤35mΩ (50rpm) |
| Working Speed | 0~100 rpm |
| Contact | Precious Metal |
| Housing | Aluminum Alloy |
| Wire Size | AWG26# Silver Plated |
| Lead Wire Length |
Rotor:1000 mm Stator:1000 mm |
| Temperature | -20°C~+60°C |
| Humidity | ≤90%RH or higher |
| IP | IP54 |
Application Picture
Product detection
