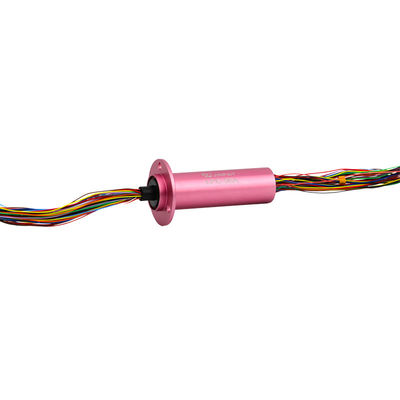

56 Circuits Electrical Rotary Slip Ring 2A Current IP54 Precious Metal

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-56A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week
Product Details
Number Of Circuits 56 Voltage 240 VAC
Current Rating 2 Amps Per Circuit Contact Material Precious Metal
Speed 300 Rpm Working Temperature -20~+60℃
IP IP54
High Light

Precious Metal Rotary Slip Ring

,

IP54 mini slip ring

,

56 Circuits Rotary Slip Ring

Product Description

56 Circuits Electrical Rotary Slip Ring 2A Current IP54 Precious Metal



Description



      The LPC-56A slip ring provides 56circuits at 2 amps.It provides a unique capability for many challenging applications. This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It entertains a smooth running, high design precision, low torque, contact resistance, and low electrical noise.



Features

  •  56 circuits
  •  Speed up to 300 rpm continuous
  •  Color-coded, silver-plated insulated lead wires
  •  Longer lead wire available
  •  Compatible with data bus protocols
  •  Sealed units are available

Specification



Circuits 56 circuits * 2A
Working Voltage 240VAC
Dielectric Strength Between circuits≥500V@50Hz
Insulation 100MΩ@500VDC
Electrical Noise ≤35mΩ
Working Speed 0~300 rpm
Contact Precious Metal
Housing Aluminum Alloy
Wire Size AWG28# Tin Plated UL
Wire Length

Rotor:250mm

Stator:250mm

Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54



Product Check

56 Circuits Electrical Rotary Slip Ring 2A Current IP54 Precious Metal 0









1.jpg2.jpg3 .jpg
