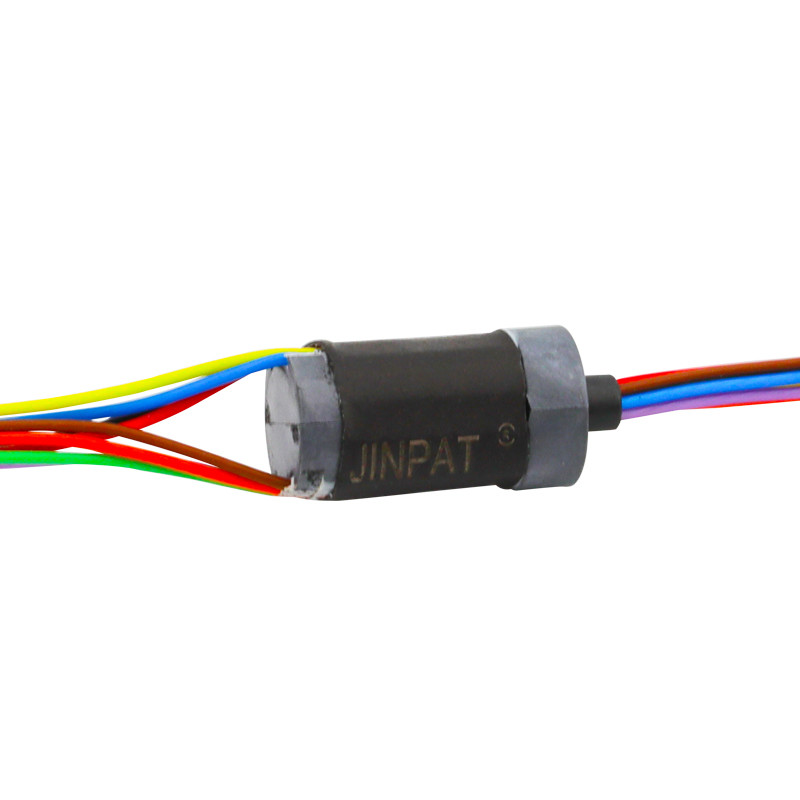

Super Miniature Slip Ring of 300 rpm 8 Circuits LPMS-08B

  • Super Miniature Slip Ring of 300 rpm 8 Circuits LPMS-08B
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPMS-08B
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 8 Working Voltage Rating 48 VAC
Contact Material Precious Metal One Application Robotics Palletizing Machines
Working Current 2A
Highlight

compact slip ring

,

mini slip ring
Product Description

Super Miniature Slip Ring of 300 rpm 8 Circuits Rotating Speed Electrical Swivel Connector for Intelligent Instrument



Super Miniature Slip Ring ​Description



     This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

      LPMS-08B is suitable for all kinds of design of lightweight, compact space, high-quality stainless steel shell material, suitable for all kinds of the bad working environment; high-quality gold plated ring, to ensure the reliability of power supply and signal transmission.



Specification

Circuits 8 circuits * 2A
Working Voltage 48VAC
Dielectric Strength Between circuits≥100V@50Hz
Insulation 10MΩ@100VDC
Electrical Noise ≤15mΩ (50rpm)
Working Speed 0~300 rpm
Contact Precious Metal
Wire Size 0.5-AWG30# Silver Plated
Wire Length

Rotor:250±5mm

Stator:250±5mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54





Super Miniature Slip Ring ​Application picture



Super Miniature Slip Ring of 300 rpm 8 Circuits LPMS-08B 0
