Super Miniature Slip Ring of 300 rpm 8 Circuits Rotating Speed Electrical Swivel Connector,for Intelligent Instrum Speed

  • Super Miniature Slip Ring of 300 rpm 8 Circuits Rotating Speed Electrical Swivel Connector,for Intelligent Instrum Speed
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPMS-08B
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 8 Working Voltage Rating 48 VAC
Contact Material Precious Metal One Application Robotics Palletizing Machines
Working Current 2A
High Light

compact slip ring

,

mini slip ring
Product Description

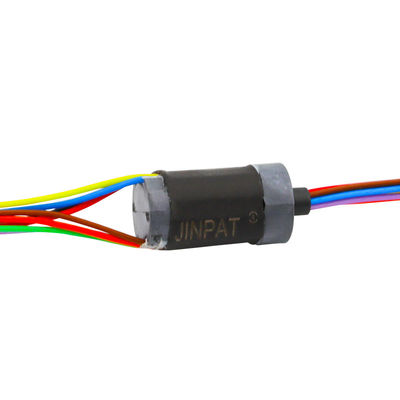

Super Miniature Slip Ring of 300 rpm 8 Circuits Rotating Speed Electrical Swivel Connector for Intelligent Instrument



Super Miniature Slip Ring ​Description



     This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

      LPMS-08B is suitable for all kinds of design of lightweight, compact space, high-quality stainless steel shell material, suitable for all kinds of the bad working environment; high-quality gold plated ring, to ensure the reliability of power supply and signal transmission.



Specification

Circuits 8 circuits * 2A
Working Voltage 48VAC
Dielectric Strength Between circuits≥100V@50Hz
Insulation 10MΩ@100VDC
Electrical Noise ≤15mΩ (50rpm)
Working Speed 0~300 rpm
Contact Precious Metal
Wire Size 0.5-AWG30# Silver Plated
Wire Length

Rotor:250±5mm

Stator:250±5mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54



Super Miniature Slip Ring Features

  • 8 circuits models
  • 2 amps,48 VAC per circuit
  • Gold-Gold contacts
  • Precision ball bearings meet or exceed life requirements
  • Flexible, color-coded, silver-plated, insulated lead wires
  • Compatible with data bus protocols
  • Sealed units are also available

Super Miniature Slip Ring ​Main Application

  • Industrial machinery
  • rotary index tables
  • Heavy equipment turrets
  • CT machine
  • Medical equipment
  • High-definition camera

Super Miniature Slip Ring ​Application picture



Super Miniature Slip Ring of 300 rpm 8 Circuits Rotating Speed Electrical Swivel Connector,for Intelligent Instrum Speed 0



Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
