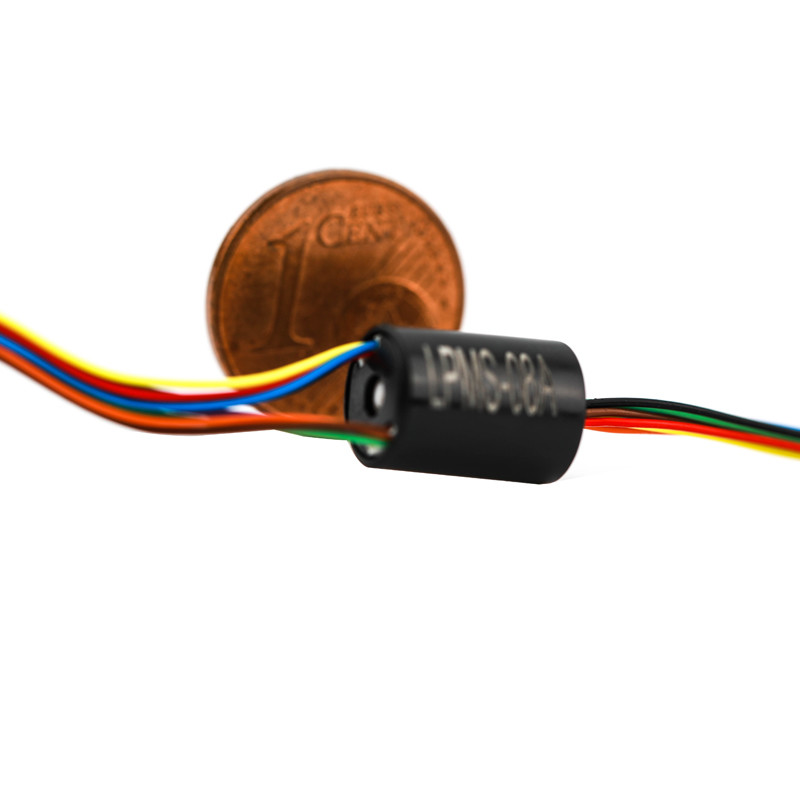

Miniature Capsule Slip Ring 4Circuits With Gold To Gold Contact

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPMS-08A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week
Product Details
Number Of Circuits 8 Voltage 240 VAC/DC
Current Rating 1 Amp Per Circuit Contact Material Precioous Metal
IP Grade 54 Temperature -20°C~+60°C
Electrical Noise ≤15mΩ (50rpm) Circuits 8 Circuits * 1A
High Light

IP54 compact slip ring

,

mini slip ring

,

IP54 compact slip ring

Product Description

Super Miniature Capsule Slip Ring Of 4 Circuits With Gold to Gold Contact For Electrical Test Equipment



Super Miniature Capsule Slip Ring Description



The LPMS-08A has metal housing, precious metal contact,  with the working speed of 0~100rpm, current of the 1circuit and working life of 10 million rpm or higher.

The LPMS-08A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuits configurations.





Super Miniature Capsule Slip Ring​ Features



◆8 circuits

◆ 1 amps per circuit, 240VAC/DC

◆ Speed up to 100 rpm continuous

◆ Precious metal contacts

◆ Flexible, color-coded, silver-plated, lead wires

◆ Metal housing optional



Super Miniature Capsule Slip Ring​ Advantages



◆ Low torque minimizes system torque budget

◆ Smooth running

◆ Low electrical noise

◆ 360°continuous rotation

◆ Compact package



Super Miniature Capsule Slip Ring​ Main Application



◆ Electrical Test Equipment

◆ Manufacturing and Processing Control Equipment

◆ CCTV Pan / Tilt Camera Mounts

◆ Robotics, Rotary Sensors, Urgent Illumination Equipment

◆ Exhibit/display Equipment.



Specification



Circuits 8 circuits * 1A
Working Voltage 240VAC
Electrical Noise ≤15mΩ (50rpm)
Working Speed 0~100 rpm
Contact Precious Metal
Wire Size AWG30# Silver Plated
Wire Length

Rotor:250mm

Stator:250mm

Temperature -20°C~+60°C
IP IP54
