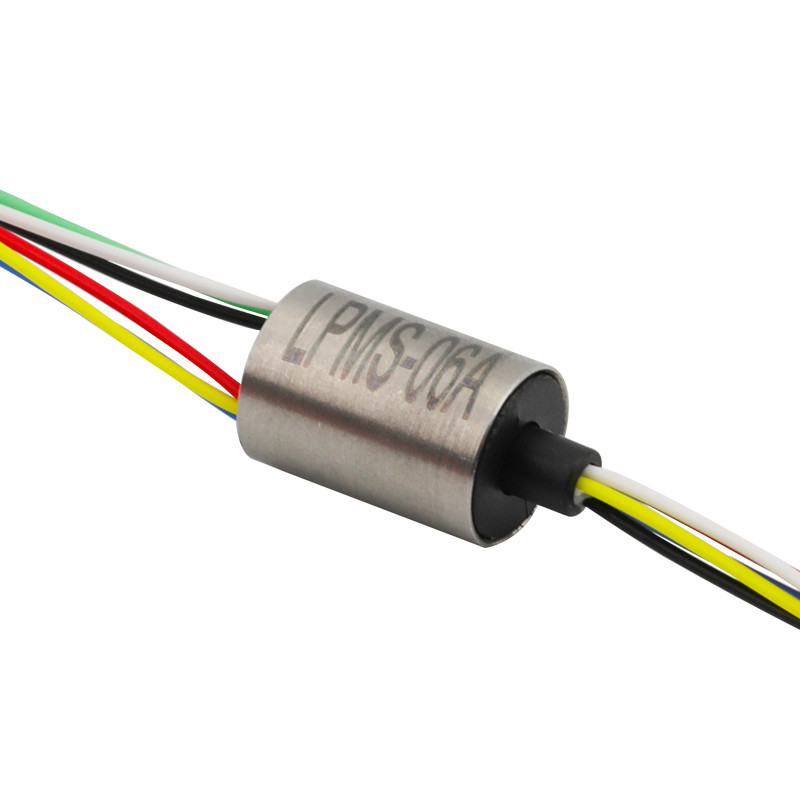

6 Circuits Compact Slip Ring LPMS-06A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 6 | Contact Material | Gold To Gold |
|---|---|---|---|
| Current Rating | 0.5A | Voltage | 48 V |
| Housing Material | Stainless Steel | Electrical Noise | 15mΩ Min |
| Highlight | compact slip ring,mini slip ring |
||
Product Description
6 Circuits Compact Slip Ring and Mini Rotary Electrical Interface with Stainless Steel Housing
Description
The LPMS-06A super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor.
The LPMS-06A allows tremendous flexibility in dealing with system size restriction when larger versions are not an option.
Specification
| Circuits | 6 circuits * 0.5A |
| Working Voltage | 48V |
| Electrical Noise | ≤15mΩ (50rpm) |
| Working Speed | 0~100 rpm |
| Contact | Precious Metal |
| Housing | Stainless Steel |
| Wire Size | AWG32# |
| Wire Length |
Rotor:250±5mm Stator:250±5mm |
| Temperature | -20°C~+60°C |
| IP | IP54 |
Outline Drawing
Application Picture
