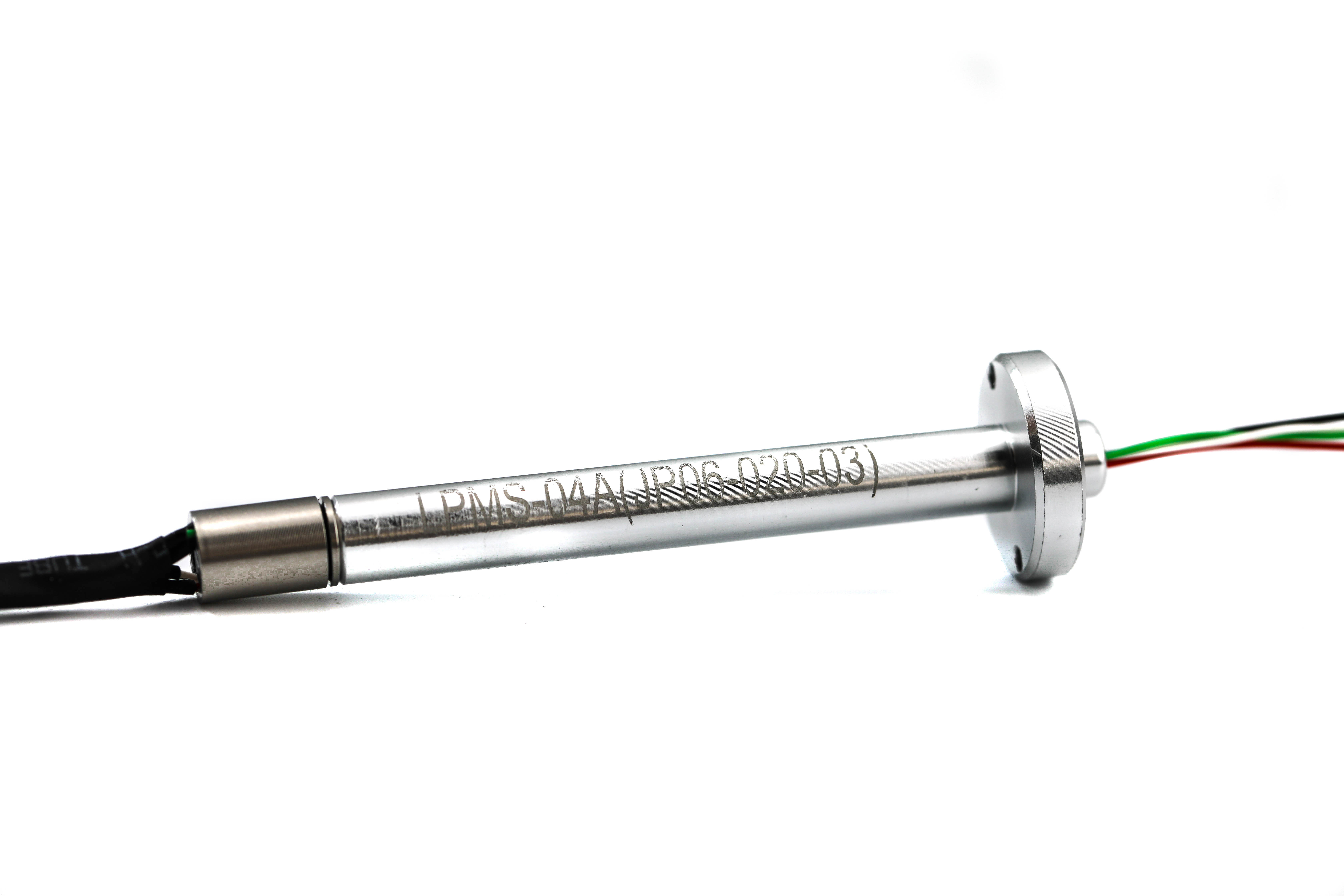

4 Circuits Model Mini Slip Ring LPM-04A

  • 4 Circuits Model Mini Slip Ring LPM-04A
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-04A
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 4 Voltage 240 VAC/DC
Operating Speed 0-200 Rpm Contact Material Precious Metal
Housing Stainless Steel
High Light

compact slip ring

,

mini slip ring
Product Description

4 Circuits Model Mini Slip Ring with Smooth Running In Precious Metal Contact for Mini Robots



The LPMS-04A slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, the slip ring is divided into the conductive ring, fluid slip ring, and smooth ring.



Specification

Circuits 4 circuits * 1A
Working Voltage 240VAC
Electrical Noise ≤70mΩ (50rpm)
Working Speed 0~200 rpm
Contact Precious Metal
Housing Stainless Steel
Wire Size AWG30# Silver Plated
Wire Length

Rotor:250mm

Stator:250mm
Temperature -20°C~+60°C
IP IP54



Outline Drawing

4 Circuits Model Mini Slip Ring LPM-04A 0



Application picture



4 Circuits Model Mini Slip Ring LPM-04A 1
