Miniature Slip Ring Maintenance Free JINPAT Professional solution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Rating | 24VAC/DC | Electrical Noise | Within15 MΩ |
|---|---|---|---|
| Operating Speed | 0-300rpm | Protection Grade | IP50 |
| Temperature | -20℃ To +70℃ | 360 Degree | Yes |
| Feature | High-precision, High-efficiency, Real-time Tracking | ||
| High Light | compact slip ring,mini slip ring,Anti Interference Miniature Slip Ring |
||
Product Description

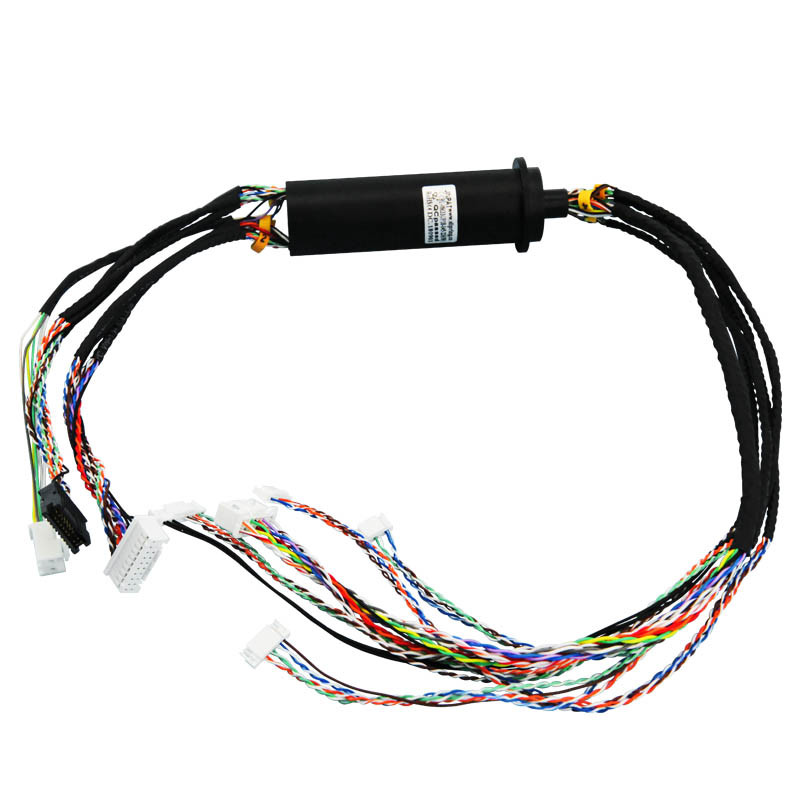

JINPAT Miniature Slip Ring for Laser Tracker with Anti-interference and Maintenance-free
Description
Laser Trackers are extremely accurate, portable coordinate measuring machines that enable you to build products, optimize processes, and deliver solutions by measuring quickly, simply and precisely.
According to the needs of customers to solve the 360 degree high-precision, high-efficiency, real-time tracking measurement, the JINPAT miniature slip ring technology research and development team has developed a variety of “miniature slip rings for laser trackers”.
The laser tracker slip ring adopts core slip ring technology, featuring multi-circuit, high speed, anti-interference and maintenance-free. Its dynamic resistance fluctuation value is within 15mΩ, using special twisted pair processing to avoid signal interference, thus making signal transmission is stable.
Besides, the laser tracker slip ring employs advanced surface treatment technology, gold to gold contact contact, ensuring extremely low contact resistance and long working lifespan, especially suitable for high precision instruments that conduct current, Gigabit Ethernet, as well as special signal in 360 degree. The slip ring has successfully passed a series of rigorous tests such as positive inversion test, life test, vibration shock test.
| Electrical & Electronics | Mechanical | Enviromental | |||
Circuits |
56 CKT | Rotating Speed |
0-300rpm or higher | Temperature | Industrial: -20℃~+60℃ |
| Military: -50℃~+80℃ | |||||
| 56×2A | Contact Material |
Precious Metal | Humidity | 60%RH or higher | |
| Voltage | 240V VC/DC | Housing Material |
Engineering Plastics | Protection Grade |
IP50 |
| Dielectric Strength | ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Torque | ≤0.88 g.m (for reference) |
Others | |
| Insulation Resistance |
≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Wire Type | AWG30# or others |
Life Span | Customizable |
| Dynamic Resistance Fluctuation Value |
≤35mΩ | Wire Length | 250mm(optional) | ||
Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.
PS:Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
