Cap Type Rotary Slip Ring 6 Circuit 2A 240 VAC/DC Low Contact Resistance

  • Cap Type Rotary Slip Ring 6 Circuit 2A 240 VAC/DC Low Contact Resistance
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPC-06A
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 6 Contact Material Gold To Gold
Current Rating 2 Amps Per Circuit Voltage 240 VAC/DC
Length 19.2mm
Highlight

rotating slip ring

,

miniature through bore slip ring
Product Description

The LPC-06B capsule slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPC-06B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



LPC-06B Slip Ring parameter



Protection Grade IP54
Working Speed 300 RPM
Circuits 6
Current Rating 2A Or higher
Voltage 240VAC
Working Temperature -40~+80℃
Electric shock material Gold to Gold
Wire specification AWG28#, silver plated , UL
Lead Wire Length Rotor:250mm; Stator:250mm
Insulation 1000MΩ@500VDC
Dielectric Strength /
Electrical noise /





LPC-06B Slip Ring Outline Drawing

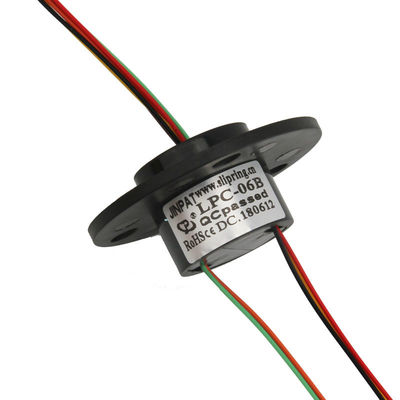

Product Image

Cap Type Rotary Slip Ring 6 Circuit 2A 240 VAC/DC Low Contact Resistance 0
