Shock Material Rotary Slip Ring Joint Electrical Connector

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-06B
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Very Low Contact Resistance Optional Rotating Speed
Contact Material Gold -Gold Typical Application Rotary Table
Highlight

rotating slip ring

,

miniature through bore slip ring

Product Description

The LPC-06B capsule slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPC-06B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



LPC-06B Slip Ring parameter



Protection Grade IP54
Working Speed 300 RPM
Circuits 6
Current Rating 2A Or higher
Voltage 240VAC
Working Temperature -40~+80℃
Electric shock material Gold to Gold
Wire specification AWG28#, silver plated , UL
Lead Wire Length Rotor:250mm; Stator:250mm
Insulation 1000MΩ@500VDC
Dielectric Strength /
Electrical noise /





LPC-06B Slip Ring Outline Drawing

Shock Material Rotary Slip Ring Joint Electrical Connector 0

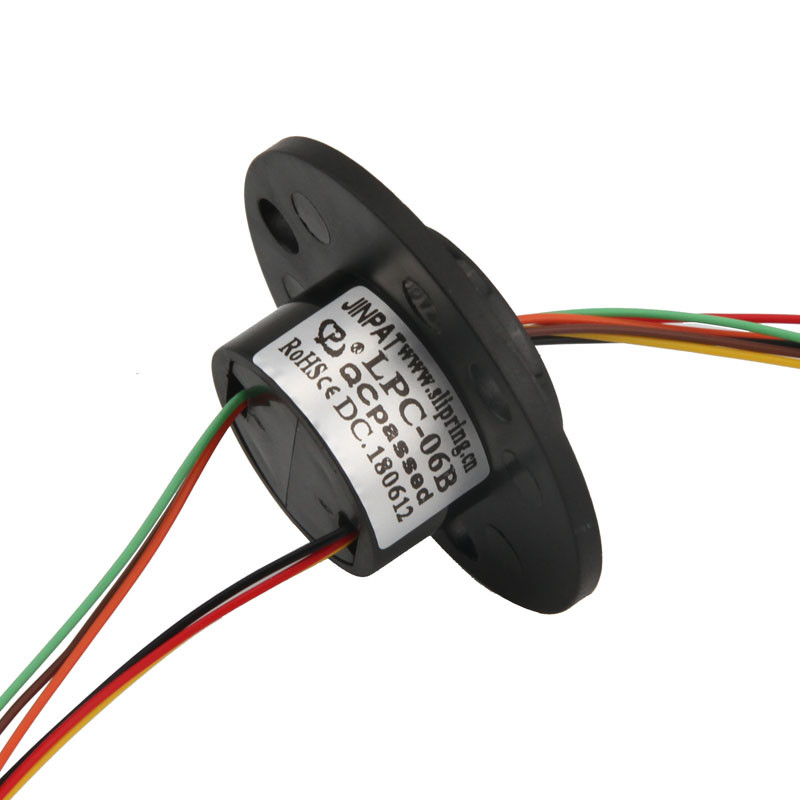

Product Image



Shock Material Rotary Slip Ring Joint Electrical Connector 1
