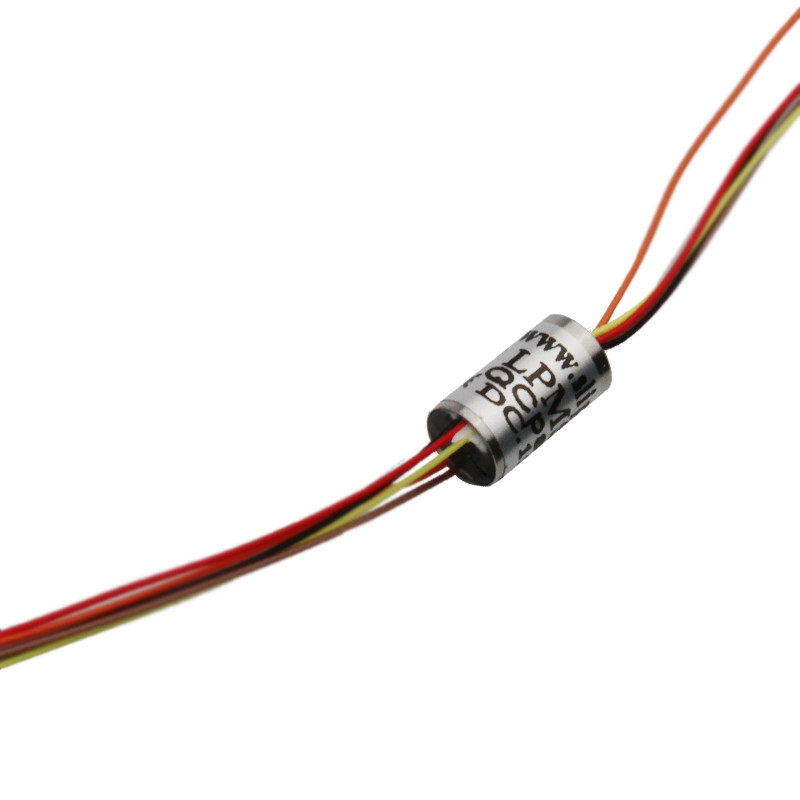

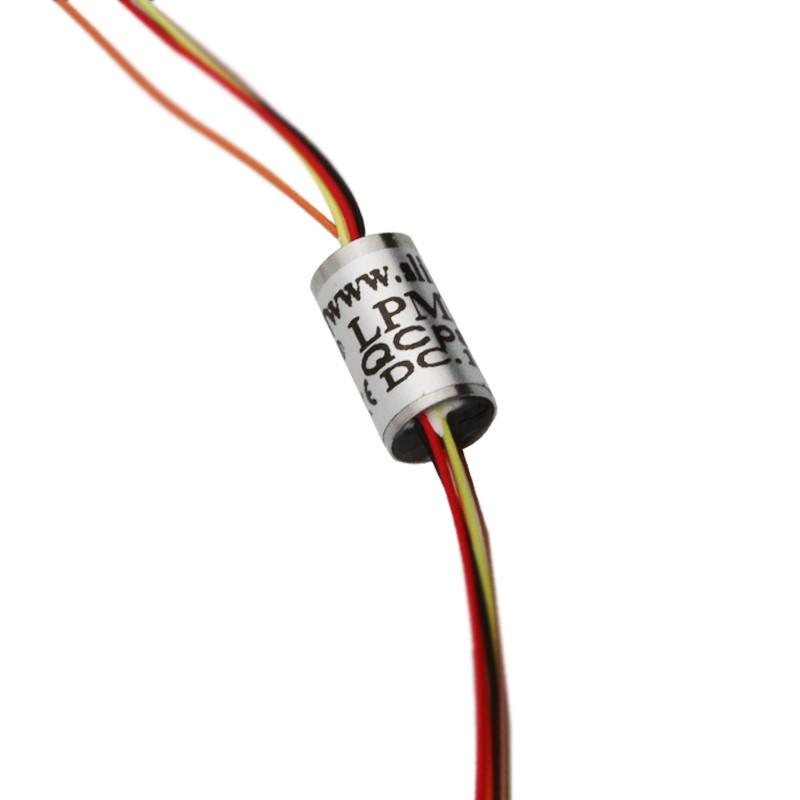

5 Circuits Electrical Rotary Slip Ring LPMS-05D

  • 5 Circuits Electrical Rotary Slip Ring LPMS-05D
  • 5 Circuits Electrical Rotary Slip Ring LPMS-05D
  • 5 Circuits Electrical Rotary Slip Ring LPMS-05D
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPMS-05D
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 1 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 5 Current Rating 1A
Voltage 48 VAC/DC Electrical Noise ≤35mΩ (50rpm)
Working Speed 0~300 Rpm Wire Size AWG32#, Silver Plated
Contact Material Contact Material
Highlight

compact slip ring

,

mini slip ring

,

5 Circuits Compact Slip Ring
Product Description

5 Circuits Compact Slip Ring , Rotary Slip Ring Electrical Interface With Low Electrical Noise



Description



The LPMS-05D super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. To simplify electrical connections, color-coded lead wires are used on both the stator and rotor. It allows tremendous flexibility in dealing with system size restriction when larger versions are not an option.



Specification

Circuits 5 circuits * 1A
Working Voltage 48VAC
Dielectric Strength Between circuits≥100V@50Hz
Insulation 10MΩ@100VDC
Electrical Noise ≤35mΩ (50rpm)
Working Speed 0~300 rpm
Contact Precious Metal
Wire Size AWG32#, Silver Plated
Wire Length

Rotor:250mm

Stator:250mm
Temperature -20°C~+60°C
Humidity ≤60%RH
IP IP54



Outline Drawing

5 Circuits Electrical Rotary Slip Ring LPMS-05D 0

Product Image



5 Circuits Electrical Rotary Slip Ring LPMS-05D 1
