IP50 Mini Capsule Slip Rings 30 Circuit 1A 240VAC Electric Swivel Slip Ring
Product Details
| Circuit Number | 30 | Voltage | 240VAC |
|---|---|---|---|
| Working Speed | 0~300 Rpm | Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH | Application | Electric Devices |
| Lead Wire Length | Rotor:250mm; Stator:250mm | ||
| High Light | 240VA Capsule Slip Rings,miniature through bore slip ring,IP50 Capsule Slip Rings |
||
Product Description
IP50 Mini Capsule Slip Rings 30 Circuit 1A 240VAC Electric Swivel Slip Ring
LPM-30A Slip Ring Description
The LPM-30A miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.
The LPM-30A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
LPM-30A Slip Ring Specification
| Circuits | 30 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Wire Size | 30# silver plated copper UL, |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |
LPM-30A Slip RingMain Application
- Electric devices
- Medical facility
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
LPM-30A Slip Ring Outline Drawing

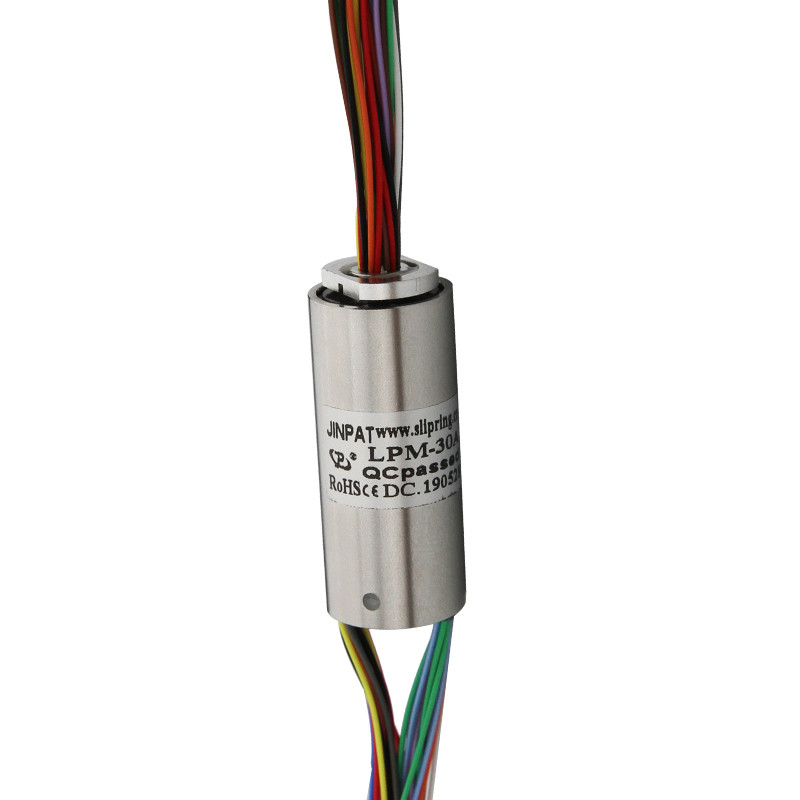

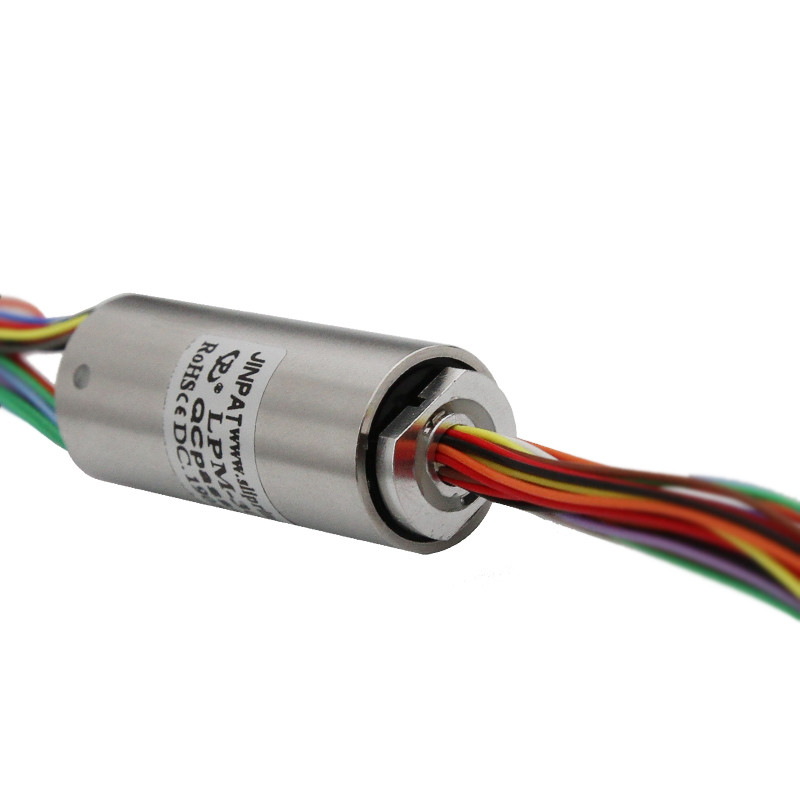

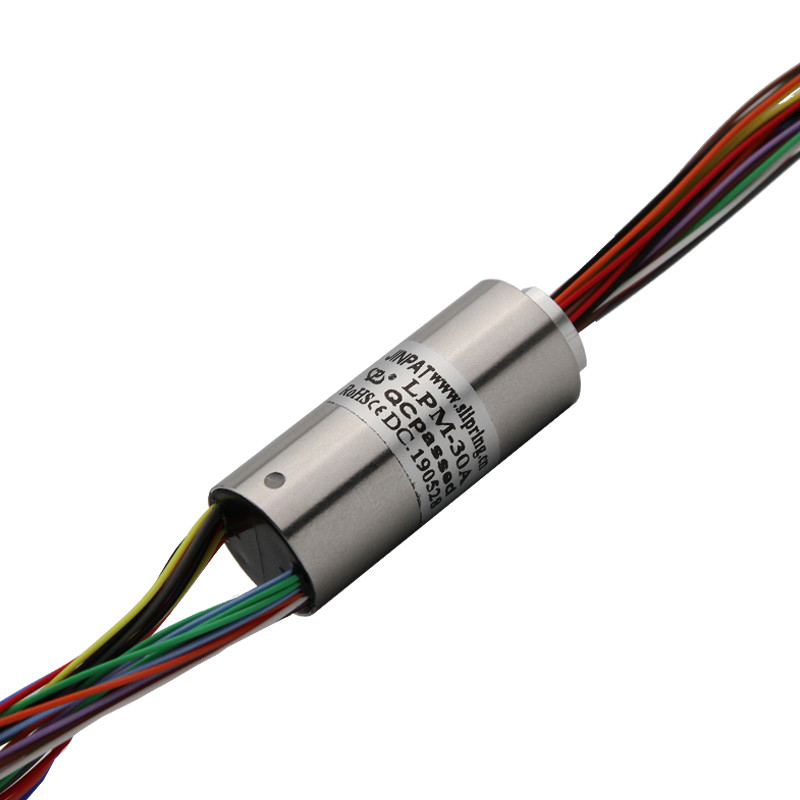

LPM-30A Slip Ring Product Display
Our Services
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
