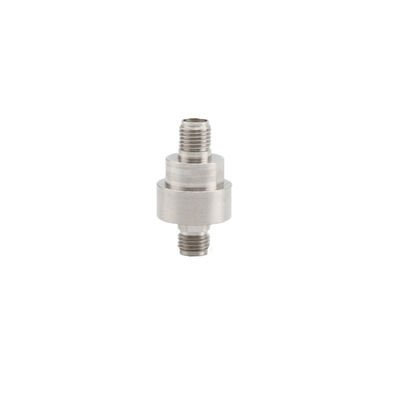

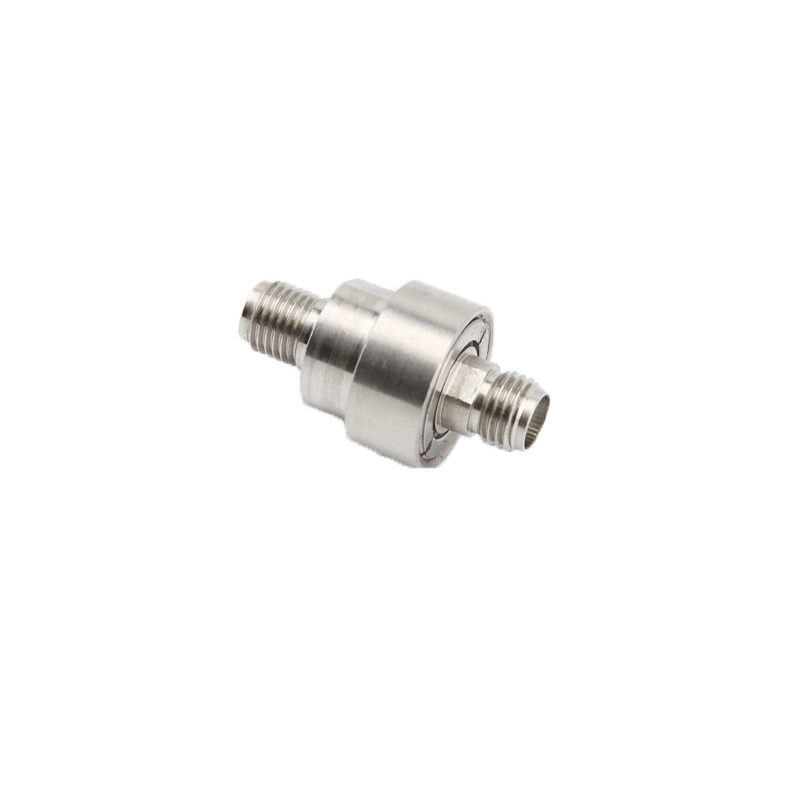

High Frequency Optical Slip Ring, Small Size, Light Weight

  • High Frequency Optical Slip Ring, Small Size, Light Weight
  • High Frequency Optical Slip Ring, Small Size, Light Weight
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPHF-01A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Channel Number 1 Working Temperature -40~+70℃
Peak Power, Max 1500W Contact Material Beryllium Copper
Connector Material Stainless Steel Protection Grade IP40
Humidity 85%
Highlight

rotating slip ring

,

miniature through bore slip ring

,

1500W Optical Slip Ring
Product Description

RF Rotary Slip Ring Description

RF rotary joint is used in devices that rotate continuously, and transmit high frequency and high speed rate signal from stationary part to rotating part. This kind of slip ring is compact in structure and easy to integrate into other devices. It is reliable in performance and excellent in shielded effect.

Meanwhile, RF coaxial connector also enjoys a good function of processing signal besides the performance that mentioned above. For example, Filtering, phase-modulation, frequency mixing, attenuation, detection and so forth. Furthermore, the low VSWR and wastage could better satisfy the needs of weapon system and precise measurement instrument.



Specification



Channel 1
Frequency Range DC to 18GHz
SVWR, max 1.20@ 0 to 6GHz; 1.25@ 6 to 12GHz; 1.35@ 12 to 18 GHz
SVWR Variation 0.03
Insertion Loss 0.25 dB@ 0 to 6GHz; 0.35dB@6 to 12GHz; 0.50dB @12 to 18GHz
Insertion Loss Variation 0.04dB
Phase, max 1°
Peak power, max 1500W
Average power, max 200W@1 GHz; 30W@18GHz
Working Speed, max 100 RPM
Connector Type SMA Female (50Ω)
Contact Material Beryllium copper
Connector Material Stainless steel
Axial Load of End Surface, max ±2N
Radial Load of End Surface, max ±2N
Starting Torque 0.5Ncm, max
Working Torque 1Ncm, max
Weight 10g
Working Temperature -40~+70℃
Humidity 85%
Protection Grade IP40
Life 0.5 million revolutions



Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
