8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed

  • 8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed
  • 8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed
  • 8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed
  • 8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPR-8H
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuit Number 8 Voltage 240 VAC
Working Speed 0~300 Rpm Contact Precious Metal
Working Temperature -20~+60℃ Protection Grade IP54
Electrical Noise ≤15mΩ
Highlight

8 Circuits Rotary Slip Ring

,

Free Slip Ring Solution

,

300 rpm Rotary Slip Ring
Product Description

Rotary joint Slip Ring Description

LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. The unit enjoys an exquisite design and replaces wire with a pin to make connections, which is in line with the RoHS Compliance. Convenient to install, it’s suitable perfectly for system where electricity and power transmission is done in a small space and plug and play is required in the application.

The LPR-8H pin connection slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPR-8H unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



Specification



Circuits 8
Current Rating 2ckt*5A, 6ckt*20A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Housing Engineering plastic
Wire Size Silver plated pin
Working Temperature -20~+60℃
Protection Grade IP54



Outline Drawing

8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed 0

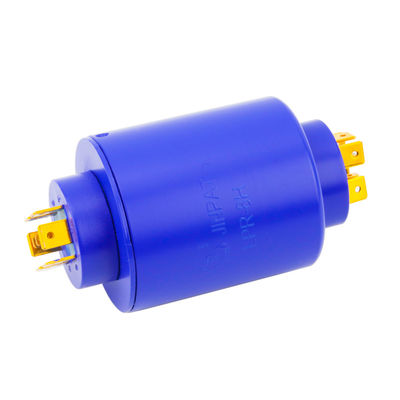

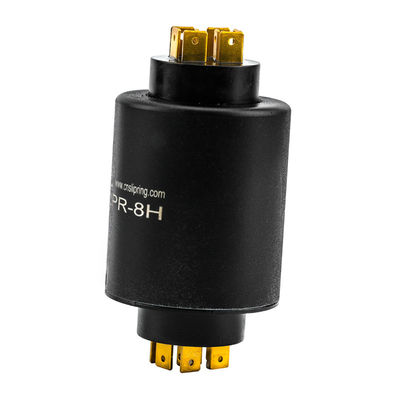

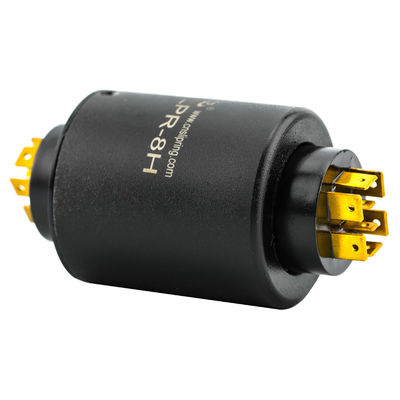

Rotary joint Slip Ring Product Display

8 Circuits 380V Voltage Rotary Slip Ring 300rpm Working Speed 1
