3 Circuit 10A Capsule Slip Ring LPC-03P

  • 3 Circuit 10A Capsule Slip Ring LPC-03P
  • 3 Circuit 10A Capsule Slip Ring LPC-03P
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPC-03P
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Very Low Contact Resistance Typical Application Rotary Table
Optional Rotating Speed
Highlight

compact slip ring

,

mini slip ring
Product Description

3 Circuit 10A Capsule Slip Ring Low Contact Resistance For Electrical Test Equipment



The LPC-03P capsule slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPC-03U unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



LPC-03P Slip Ring Parameter

Electronic & Electric Mechanical
Circuits Total 3 CKT

Working Speed

 0~300rpm
Detail 3x10A Contact Material Gold to Gold
Rating Voltage 0~240V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP



IP40

 Note: "P" stands for power, "S" stands for signal.





LPC-03P Slip Ring Outline Drawing



3 Circuit 10A Capsule Slip Ring LPC-03P 0

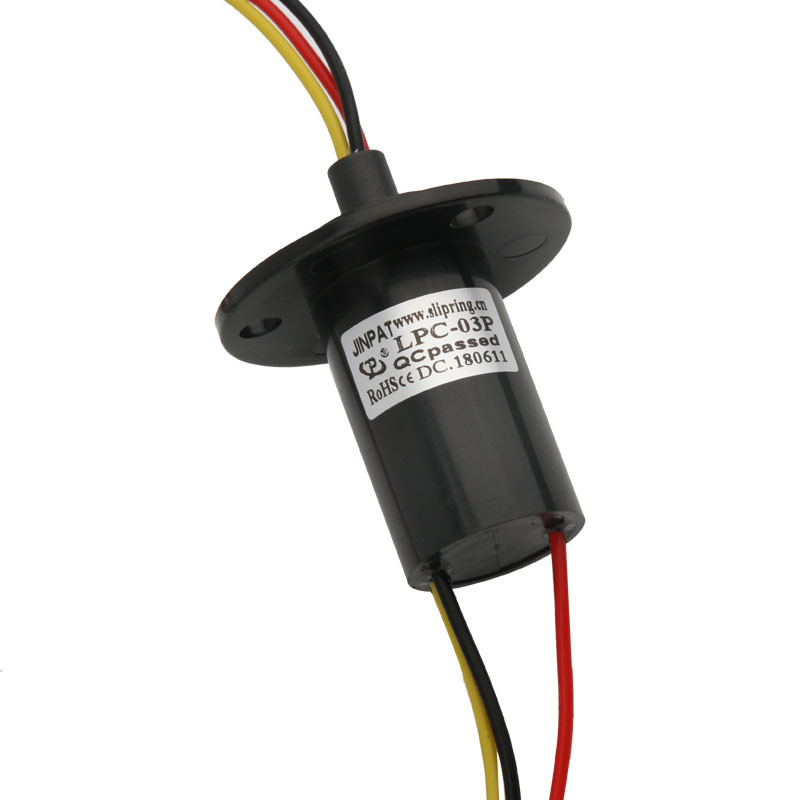

Product Image



3 Circuit 10A Capsule Slip Ring LPC-03P 1
