24 Circuit Miniature Slip Ring Compact Capsule Rotary Electrical Interfaces
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Current Rating | 2A Per Wire | Number Of Circuits | 24 |
|---|---|---|---|
| Feature | Low Friction | ||
| High Light | compact slip ring,mini slip ring |
||
Product Description
24 Circuit Miniature Slip Ring Compact Capsule Rotary Electrical Interfaces
A slip ring is also called rotary electrical interfaces, rotating electrical connectors, collectors, swivels, or electrical rotary joints, these rings are commonly found in slip ring motors, electrical generators for alternating current (AC) systems and alternators and in packaging machinery, cable reels, and wind turbines. They can be used on any rotating object to transfer power, control circuits, or analog or digital signals including data such as those found on aerodrome beacons, rotating tanks, power shovels, radio telescopes or heliostats.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Circuits | 24 calls |
| Voltage | 240 VAC/DC |
| Temperature Range | -20℃ ~ +60℃ |
| Contact Material | Gold to Gold |
| Electrical noise | ≤8mΩ |
| Dielectric Strength | 500 VAC @50Hz, between each circuit |
| Insulation resistance | 100MΩ@500VDC |
| Protection level | IP54 |

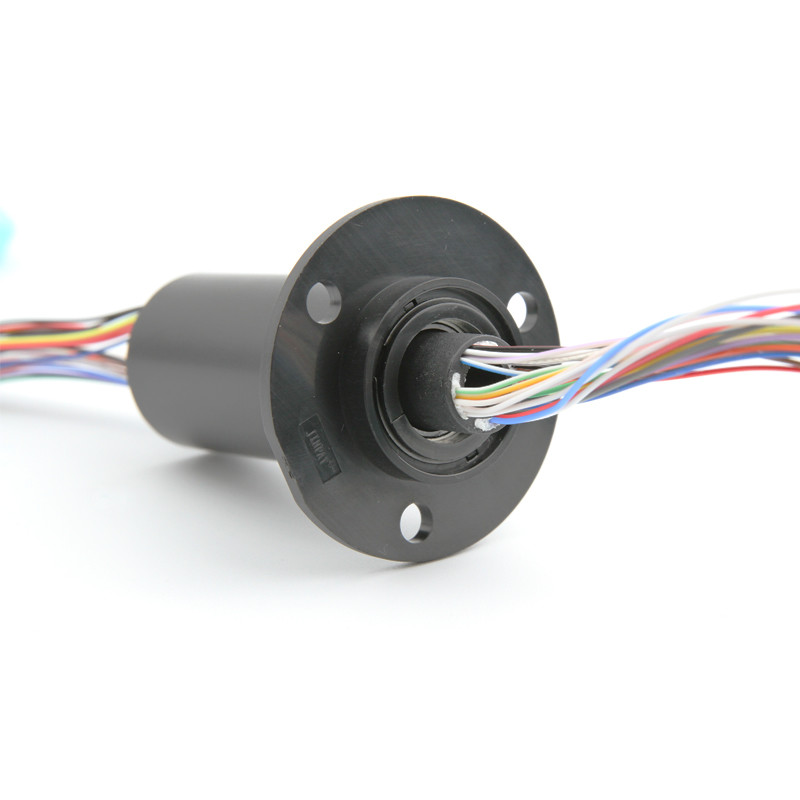

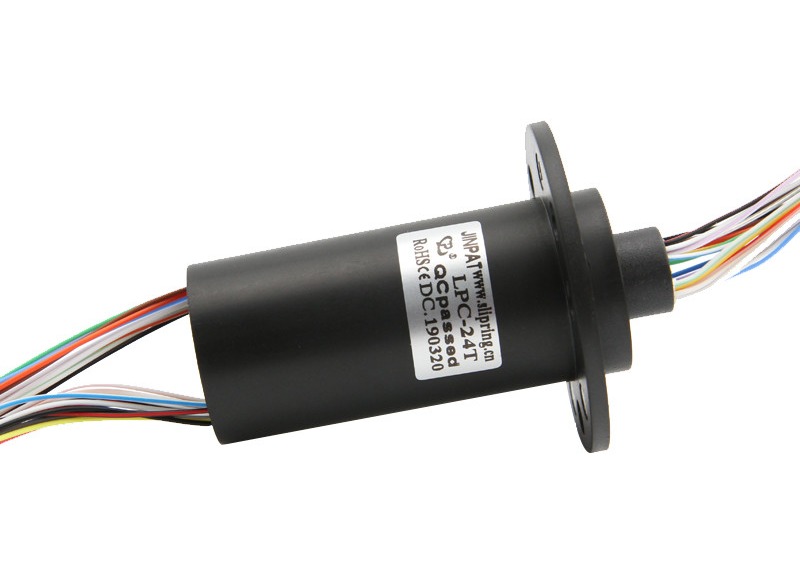

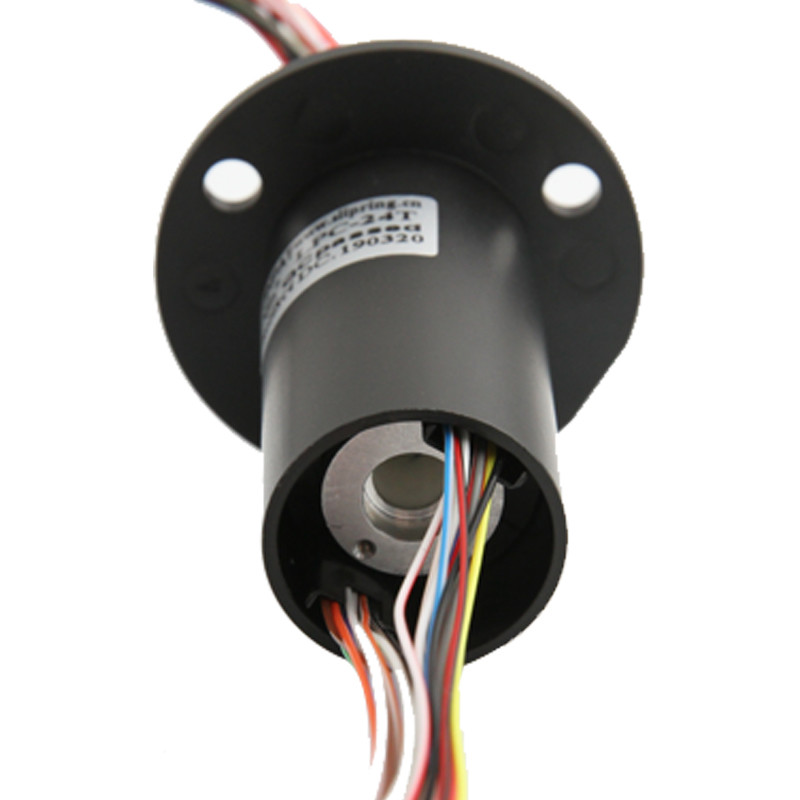

Product Image
