Smooth Capsule Slip Ring 18 Circuit LPC-18F
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 18 | Voltage | 240V |
|---|---|---|---|
| Current Rating | 2A Per Wire | Contact Material | Gold To Gold |
| Highlight | compact slip ring,mini slip ring |
||
Product Description

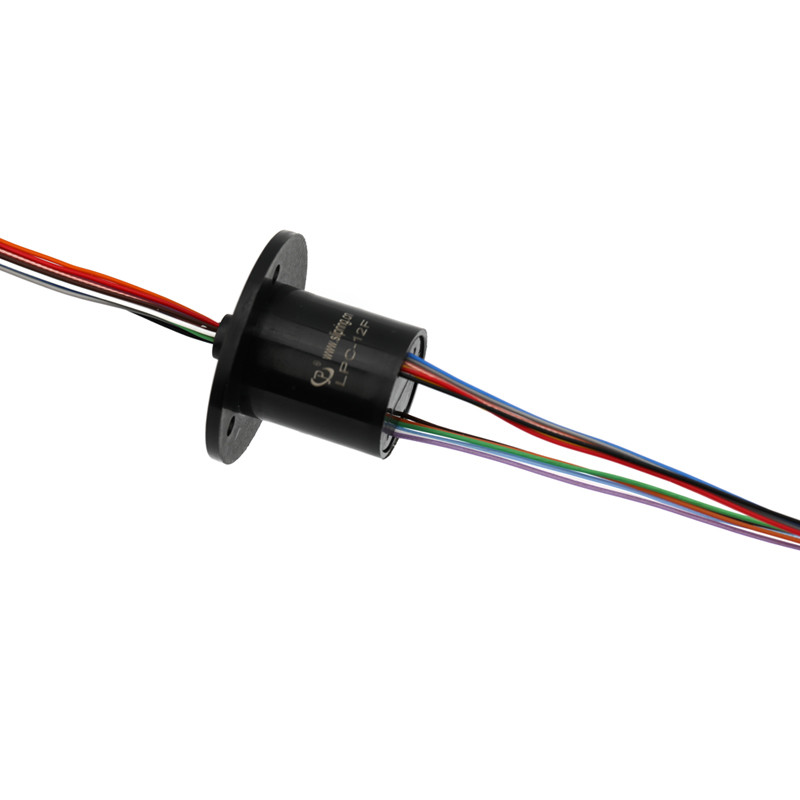

Smooth Capsule Slip Ring With Flange 240 Voltage And 2A Per Wire Long Life

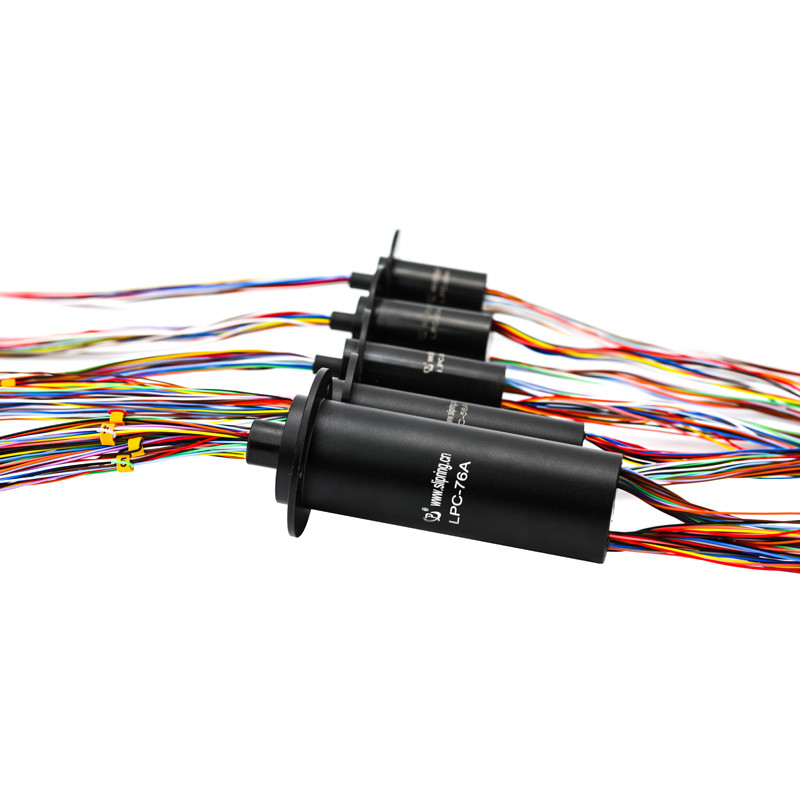

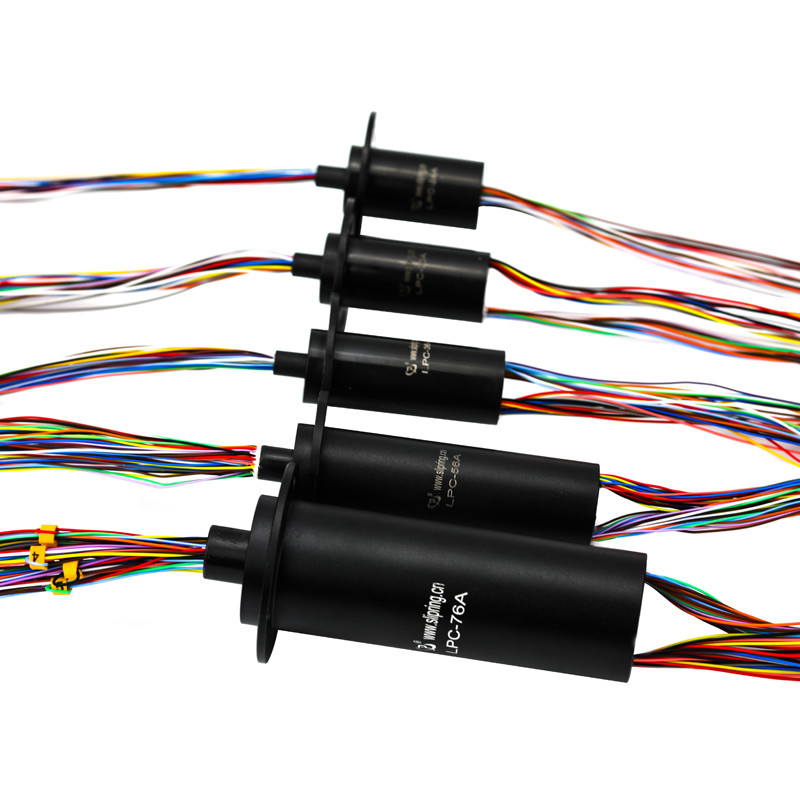

The LPC-18F capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The slip ring with18 wires and compact body size .Using a 90° V-groove ring design for each ring, the LPC-18A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12, 18 circuit modesl.
Benefits
- Certification: ISO9001, FCC, CE, BV Class, GJB, etc.
- 18 circuits @ 2A, 0-300rpm, with mounting flange
- Gold-Gold contact
| Specifications | |
| Operating Speed | 0-200 rpm |
| Number of Circuits | 18 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥200 VAC @50Hz, between each circuit |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | 30mΩ Min |
