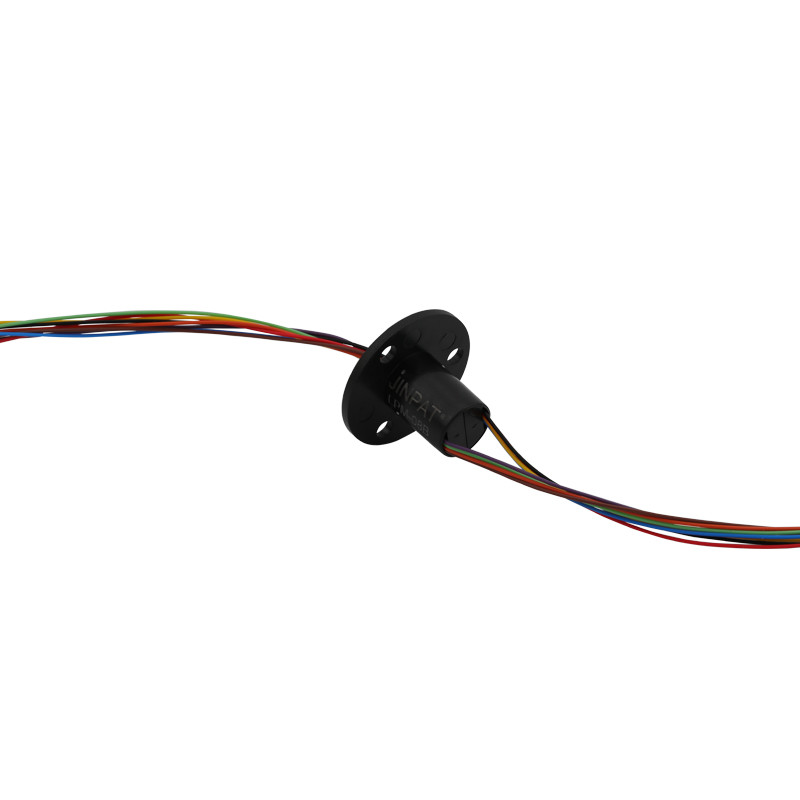

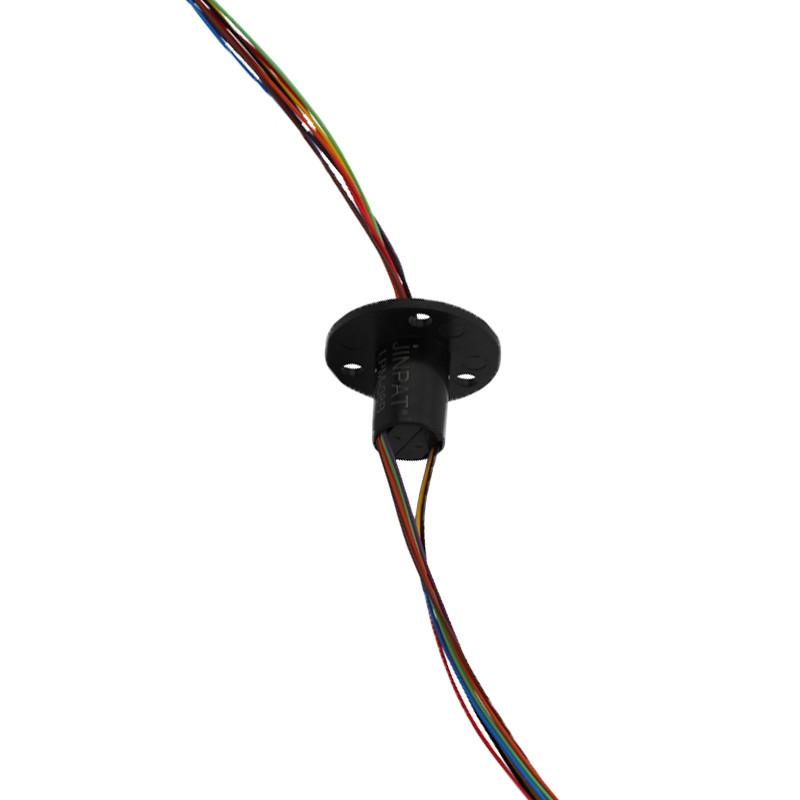

8 Circuits Miniature Slip Ring Connector 0~300rpm Low Resistance IP40
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rotating Speed | 0~300rpm | Contact Material | Gold To Gold |
|---|---|---|---|
| Life Span | Customizable | Application | Rolling Machine |
| Max Speed | 2000RPM | Type | Mercury Slip Ring |
| Circuits | 8 Circuits | ||
| Highlight | fluid slip ring,high voltage slip ring,8 Circuits High Speed Slip Ring |
||
Product Description
The miniature units have been developed to provide a perfect solution for the transmission of power and signal for devices with limited installation space. In JINPAT LPM-08B-0404 miniature slip ring, metal material has been chosen as its housing, and gold to gold contact has been adopted, thus making the slip ring has the feature of stable performance. Besides, the special toughened material design makes it more beautiful. Slender mini shape is close to the size of a pencil. What’s more, the slip ring has a total of 8 circuits, 4 circuits has been used to transmit 4A current.
Features and Advantages
l Military materials and manufacturing processes
l Stable performance, helping the equipment to transmit signals more accurately
l Long life, high protection, slip ring maintenance free
l Compact appearance, compact structure, light weight
l Easy installation, smooth operation
l Low torque, extremely low electrical noise, low resistance, and no friction
| Electrical & Electronics | Mechanical | ||
| Circuits | Total : 8 circuits ; 4 circuits*4A | Rotating Speed | 0~300rpm |
| Rating Voltage | 110VAC/DC | Contact Material | Gold To Gold |
| Dielectric Strength | 200VAC@50Hz(P) | Housing Material | Engineering Plastics |
| Insulation Resistance | 50MΩ@200VDC (P) |
Wire Length | Stator: 200mm Rotor: 55mm |
| Dynamic Resistance Fluctuation Value | 35MΩ | ||
| Lead Wire Size | AWG28 # silver plated copper UL, | / | |
| Environmental | Others | ||
| Temperature | -20°C~+60°C | Life span | Customizable |
| Humidity | ≤60%RH | Note: "P" stands for power, "S" stands for signal | |
| Protection grade | IP40 | ||
