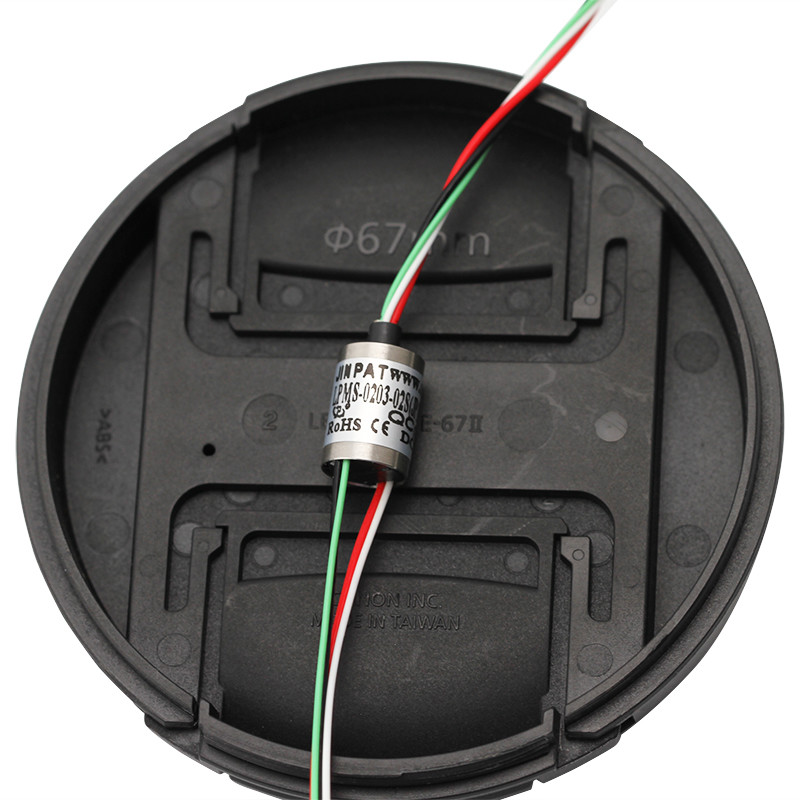

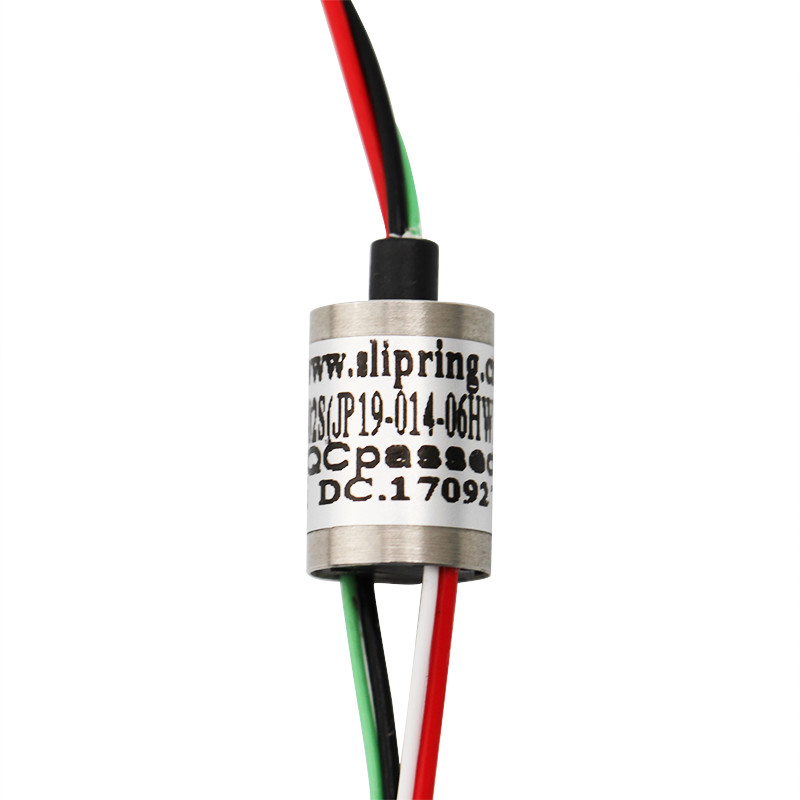

Miniature Slip Ring IP54 Integrated structure design

  • Miniature Slip Ring IP54 Integrated structure design
  • Miniature Slip Ring IP54 Integrated structure design
  • Miniature Slip Ring IP54 Integrated structure design
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPMS-0203-02S(JP19-014-06HW)
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rotating Speed 0~300rpm Contact Material Gold To Gold
Life Span 1 Million Protection Grade IP54
Product Name Electrical Slip Ring Speed 250RPM
Highlight

compact slip ring

,

mini slip ring
Product Description
LPMS Super Miniature Capsule Slip Ring is able to integrate 12 or more circuits, with optional outer diameter from 5.5mm~11.1mm. This series is super mini size, with precise design using military-standard material. It can adapt to both high and low ambient temperature with a low resistance and small torque. These characteristics guarantee smooth and reliable operation of the slip rings and thus able to fit in high precision equipment or other applications with limited space and harsh conditions. Representative models: LPMS-05D/08A/08B/08C/08D/12U, etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Product parameter table

Electrical & Electronics Mechanical
Circuits 2 circuits*3A ; 2 circuits*1A Rotating Speed 0~300rpm
Rating Voltage 6VAC/DC Contact Material Gold To Gold
Dynamic Resistance Fluctuation Value 35MΩ Housing Material Stainless Steel
Lead Wire Length Rotor : 100mm
Stator: 50mm
Lead Wire Size AWG26 # /30# silver plated copper UL, /
Environmental Others
Temperature -20°C~+60°C Life span 1 million
Humidity ≤60%RH Note: "P" stands for power, "S" stands for signal
Protection grade IP54
Product outline drawing
Miniature Slip Ring IP54 Integrated structure design 0
