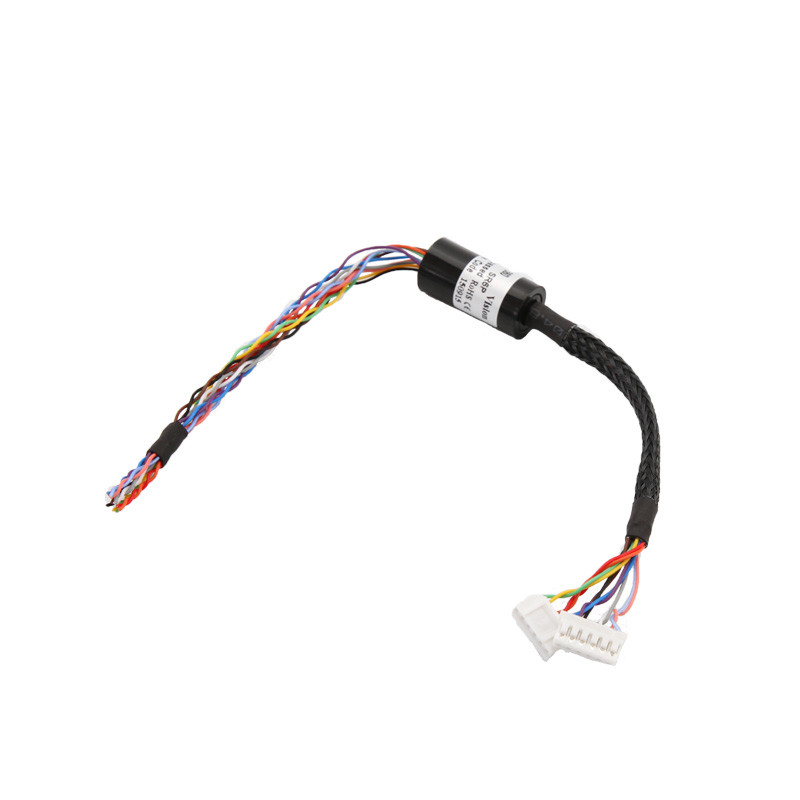

Multi Circuits Capsule Slip Rings LPMS-08A

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPMS-08A(JP19-043-04HW)
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rating Oitage 48V AC/DC Working Humidity ≤60%RH
Protection Level IP40
High Light

33VDC Power Slip Ring


IP40 Power Slip Ring


8A Pipeline Inspection Robot Slip Ring

Product Description

Pipeline inspection robot is a kind of machine that can automatically walk along the inside or outside of a small pipe for inspection. Lately, according to customer requirements, JINPAT has developed a pipeline inspection robot slip ring based on the standard LPMS-08A super miniature slip ring.


The structure of new LPMS-08A is extremely compact, with a diameter of only 8mm and a total length of 11.2mm. Due to the gold-to-gold contact, the slip ring also has very good electrical performance. Aside from the compact structure and good electrical performance, JINPAT pipeline inspection robot slip ring also can integrate 2 circuits@analog video signals, 2 circuits@other analog signals, 2 circuits@currents (110mA @ 33 V DC) and 2 GND, etc. Furthermore, in order to allow the pipeline inspection robot to accept control commands, integrated control signals are also necessary. Its protection level can reach IP65, which can be used in severe environment. And it can fully meet the demanding requirements of pipeline inspection robot for component installation space. This customized JINPAT pipeline inspection robot slip ring has been well received by customers.


Features and Avantages


  • Military materials and manufacturing processes
  • Stable performance, helping the equipment to transmit signals more accurately
  • Long life, high protection, slip ring maintenance free
  • Compact appearance, compact structure, light weight
  • Easy installation, smooth operation
  • Low torque, extremely low electrical noise, low resistance, and no friction




Electronic & Electric
Circuits total 8CKT

2Circuits*Analog Video FBZSSingnal 2;Circuits*CAN Signal;2Circuits*Power;2Circuits*Signal

Working Speed 0~300rpm
Rating oitage 48V AC/DC Contact Material Precious Metal

Dynamic Resistance

Fluctuaion Value

≤35mΩ Housing Material Engineering plastics
Lead Wire Size

AWG30# silver plated

copper UL®,

Lesd Wire Length


Rotor: 45±5mm




-20°C~+60°C Application /
Working Humidity ≤60%RH Other /
Protection Level IP40 Note:"P" stands for power,"S"stands for signal.



Outline Drawing

Multi Circuits Capsule Slip Rings  LPMS-08A 0
