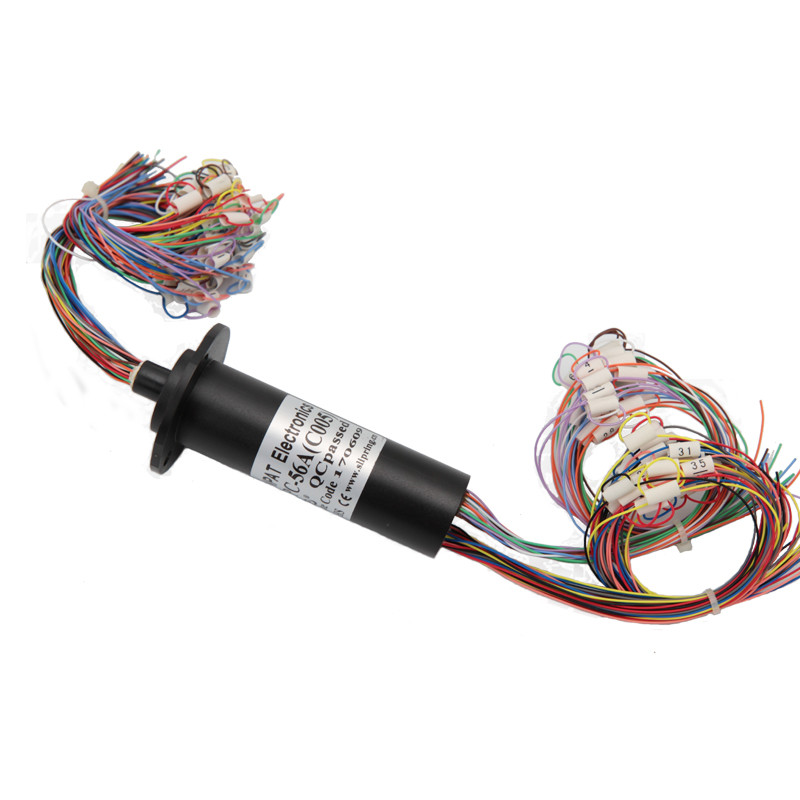

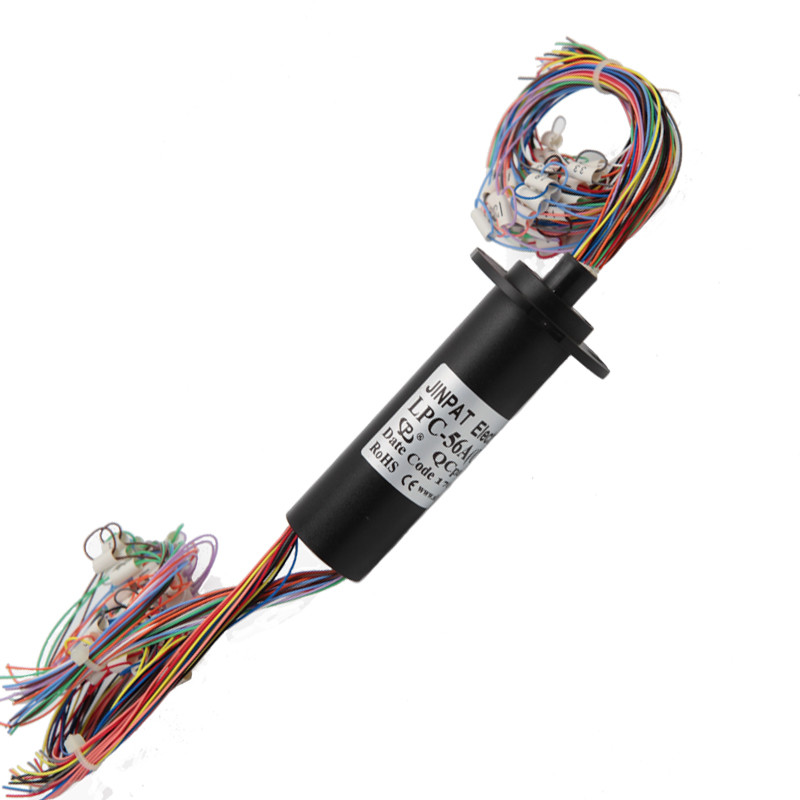

Capsule Slip Ring 56 Circuits LPC-56A

  • Capsule Slip Ring 56 Circuits LPC-56A
  • Capsule Slip Ring 56 Circuits LPC-56A
  • Capsule Slip Ring 56 Circuits LPC-56A
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-56A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Engineering Plastics Torque ≤0.88 G.m
Wire Type AWG30# Protection Grade IP50
Humidity 60%RH Or Higher Life Span Customizable
Highlight

2A Conductive Capsule Slip Ring

,

IP50 Capsule Slip Ring

,

IP50 conductive slip ring
Product Description

2A Conductive Capsule Slip Ring Commutator Precious Metal 56 Circuits



The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.



Product parameter table



Electrical & Electronics Mechanical Enviromental

Circuits		 56 CKT Rotating Speed 0-300rpm or higher Temperature Industrial: -20℃~+60℃
Military: -50℃~+80℃
56×2A Contact Material Precious Metal Humidity 60%RH or higher
Voltage 240V VC/DC Housing Material Engineering Plastics Protection
Grade		 IP50
Dielectric Strength ≥500VAC@50Hz(P)
≥100VAC@50Hz(S)		 Torque ≤0.88 g.m
(for reference)		 Others
Insulation
Resistance		 ≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S)		 Wire Type AWG30#
or others		 Life Span Customizable
Dynamic Resistance
Fluctuation Value		 ≤35mΩ Wire Length 250mm(optional)



Product outline drawing



Capsule Slip Ring 56 Circuits LPC-56A 0







LPC-56A is a JINPAT capsule slip ring model with 56 channels. JINPAT LPC-56A slip ring model adopts refined structure design. While integrating up to 56 channels, LPC-56A slip ring is able to maintain a compact size, with a diameter of 25mm and a length of 85.7mm. LPC-56A is fit for applications that demand multiple channels to transmit power and various kinds of signals. JINPAT capsule slip ring LPC-56A also features smooth rotation and low electrical noise. With little friction, the slip ring can rotate in a fluent way and therefore more endurable. JINPAT Electronics is an expert in slip ring industry. Contact JINPAT to find the slip ring fit right your needs.
