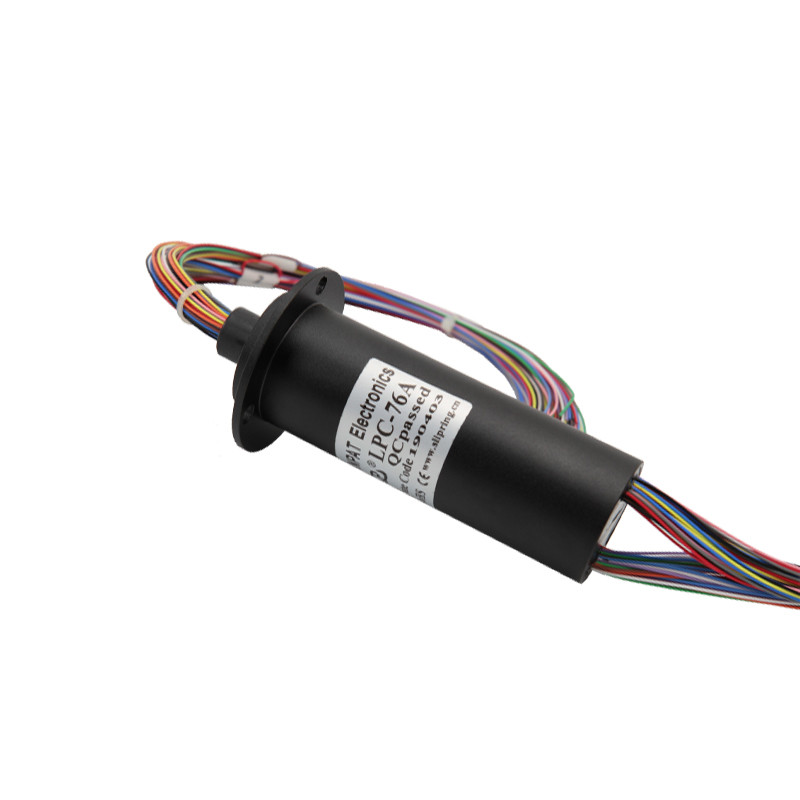

Micro Slip Ring 76 Circuits 2A LPC-76A

  • Micro Slip Ring 76 Circuits 2A LPC-76A
  • Micro Slip Ring 76 Circuits 2A LPC-76A
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-76A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Compact Size Housing Material Aluminum Alloy
Contact Material Precious Metal Humidity 60%RH Or Higher
Circuits 76×2A Torque ≤0.88 G.m (for Reference)
High Light

AWG 30 Micro Slip Ring

,

AWG 30 Mechanical Slip Ring

,

12.5mm Micro Slip Ring
Product Description

Wire Type AWG 30 Micro Slip Ring 76 Circuits 2A Mechanical Slip Ring

The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.

Product parameter table


Electrical & ElectronicsMechanicalEnviromental
Circuits76 CKTRotating
Speed		0-300rpm or higherTemperatureIndustrial: -20℃~+60℃
Military: -50℃~+80℃
76×2A
Voltage240V VC/DCContact
Material		Precious MetalHumidity60%RH or higher
Housing
Material		Aluminum AlloyProtection
Grade		/
Dielectric Strength≥500VAC@50Hz(P)
≥100VAC@50Hz(S)		Torque≤0.88 g.m
(for reference)		Others
Insulation
Resistance		≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S)		Wire TypeAWG30#
or others		Life SpanCustomizable
Dynamic Resistance
Fluctuation Value		≤35mΩWire Length250mm(optional)


Micro Slip Ring 76 Circuits 2A LPC-76A 0
LPC-76A is a JINPAT slip rings flange with 76 channels. It is a slip rings model developed for special devices and equipment that demand a great deal of channels within a limited space for electronic component. LPC-76A integrated 76 channels, the cables are void of being twisted. This compact size slip rings is able to enable a smooth and reliable data and power transmission during 360-degree rotation. JINPAT slip rings are maintenance-free and enjoy a super long life. LPC-76A is especially fit for electronic devices in specifically industries. It is a high-tech slip rings product.
