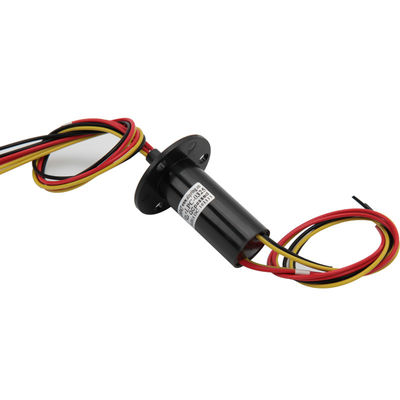

300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

  • 300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
  • 300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-0325-03S(JP23-141-02)
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week
Product Details
Number Of Circuits 3Circuits*25A / 3Circuits*LM35 Rotating Speed 0-300rpm
Contact Material Gold-to-gold Housing Material Engineering Plastics
IP 40 Working Humidity Working Humidity
High Light

300 rpm High Speed Slip Rings

,

16mm High Speed Slip Rings

,

IP 40 electrical slip rings
Product Description

300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold



JINPAT LPC-0325-03S is a special capsule slip ring model with built-in thermostat. This is a slip ring model with three 25A channels, which is relatively high compared with other slip ring of the capsule slip ring series. A larger power capacity usually means it might generate more heat during operation. To ensure a stable and smooth rotation and power transmission, LPC-0325-03S is integrated with a build-in thermostat, so there are 3 LM35 circuits. With the thermostat, this capsule slip ring is able to endure low and high temperature that ranges from -20 to 80 degree centigrade. With built-in thermostat, the slip ring can adjust itself to the fittest temperature and therefore guarantee the stable electrical performances. LPC-0325-03S slip ring is a perfect model for small application with rotary power transmission demands. With IP40 protection grading, this slip ring is a competitive model in demanding environment.



Product outline drawing



300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold 0



Product parameter table



Electrical & Electronics Mechanical
Number of
Circuits		 7CKT Rotating
Speed		 0-300rpm
3Circuits*25A /
3Circuits*LM35
Rating Voitage 240V AC/DC Contact
Material		 Gold-to-gold
Insulation
Resistance		 ≥500MΩ@50Hz(P)
≥100VAC@50Hz(S)		 Housing
Material		 Engineering Plastics
Dielectric Strength ≥100VAC@200VDC(P)
≥10MΩ@100VDC(S)		 Lead Wire Length Stator:250±5mm
Rotor:250±5mm
Environment Remarks
Working TEmperature -20℃~+60℃ Application /
Working Humidity ≤60％RH Other /
IP 40 Note:"P"stands for power,"S"stands for signal.



The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.




micro slip ring Features:
  • Compact size
  • Gold-to-gold contact
  • Low resistance
  • Long service life
  • Integrate multifarious signals
micro slip ring Options:
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass
  • production
micro slip ring Main Applications:

◆ CCTV pedestal

◆ Automatic arm

◆ Medical equipments

◆ Rotary index table

◆ Production line, industry process equipments
