Rotary Electrical Slip Ring 9 Circtir 10A With Fiber Optic

  • Rotary Electrical Slip Ring 9 Circtir 10A With Fiber Optic
  • Rotary Electrical Slip Ring 9 Circtir 10A With Fiber Optic
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-0910-3502-F001
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insertion Loss ＜2dB Insertion Loss-WOW ＜0.5dB
The Bending Radius 50mm Working Wavelength 1310nm-1650nm
Return Loss ＞40dB
High Light

1650nm Rotary Slip Ring

,

1310nm Rotary Slip Ring

,

1650nm optical slip ring
Product Description

Precious Metal Max 1650nm Rotary Slip Ring For Testing Equipment



JINPAT LPC-0910-3502-FO01 is a high precision slip ring with compact design. With an integrated optical rotary joint, this slip ring model is able to transmit power, signals and optical signals. This slip ring model adopts aluminum alloy as housing material and precious metal as contact material. Taking up special construction and manufacturing technique, LPC-0910-3502-FO01 shows great anti-interference, and guarantee an extremely low data package loss. It is very smooth during rotation, and therefore produce barely any electrical noise. LPC-0910-3502-FO01 takes up advanced technique in the field, and is well-received among the customers. This capsule optical slip ring is fit for electrical devices with demand to transmit optical signals.

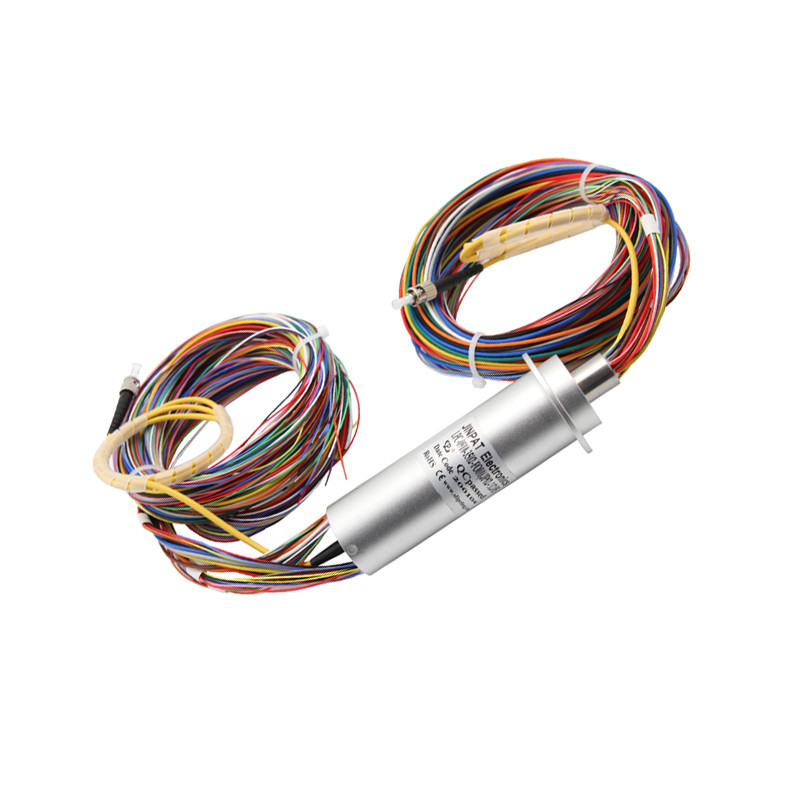

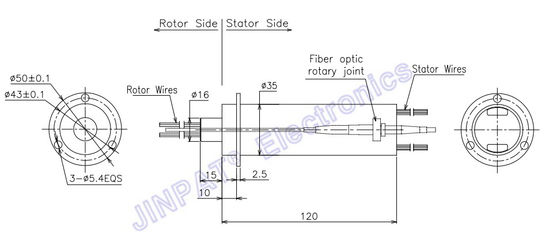

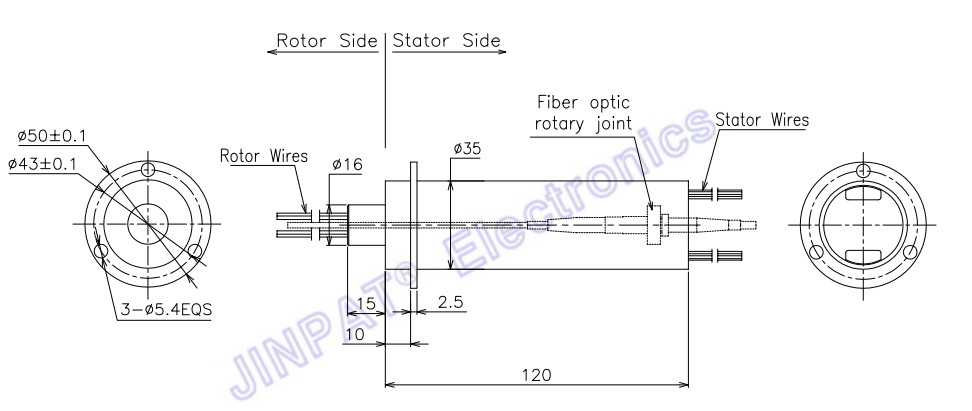

Product outline drawing



Rotary Electrical Slip Ring 9 Circtir 10A With Fiber Optic 0

Product parameter table



Optical fiber Parameter
Optical fiber type Single mode Working wavelength 1310nm-1650nm
Insertion Loss ＜2dB Return loss ＞40dB
Insertion Loss-WOW ＜0.5dB Light power 23dBm
The bending radius 50mm Connect Model ST Flat Face
Electronic & Electric Mechanical
Circuits Total 44 CKT Working Speed 0-100rpm
Circuits Detail 9*10A/35*2A Contact Material Precious Metal
Rating Voitage 240V AC/DC Housing Material Aluminum Alloy
Dielectric Strength ≥500VAC@50Hz Lead Wire Length Stator:2000±5mm
Rotor:2000±5mm
Insulation Resistance ≥100MΩ@500VDC Dynamic Resistance
Fluctuation Value		 ≤15mΩ
Environment Remarks
Working Temperature -40℃~+85℃ Application /
Working Humidity ≤60％RH Other /
IP IP54 Note:"P"stands for power,"S"stands for signal.



The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
