Mechanical Slip Ring 250 Rpm 18 Circuits JINPAT Micro cap slip ring

  • Mechanical Slip Ring 250 Rpm 18 Circuits JINPAT Micro cap slip ring
  • Mechanical Slip Ring 250 Rpm 18 Circuits JINPAT Micro cap slip ring
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-18C
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 0-250 Rpm Total Circuits 18
Contact Material Gold To Gold Lead Length Standard 250 Mm (9.843 Inch)
Electrical Noise 1 MΩMin Application Mechanical Arms
Insulation Resistance 100 MΩ @ 500 VDC
High Light

18 Circuits Mechanical Slip Ring

,

250 Rpm Mechanical Slip Ring

,

250 Rpm miniature slip ring
Product Description

18 Circuits Mechanical Slip Ring 250 Rpm JINPAT Micro cap slip ring

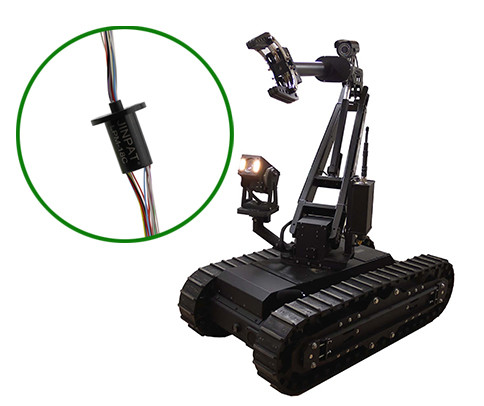

Mechanical Arms slip ring,18 Circuits 0-250 rpm Gold to Gold,for Bomb Disposal Robots

In case of the robot arm, JINPAT recommends LPM miniature slip ring series. JINPAT miniature slip ring is a first choice for robot arms. There are several joints of the bomb disposal robot arm to enable a flexible movement. Given the danger of the task, every move should be accurate and prompt. JINPAT miniature slip rings can rotate in a smooth and accurate way. Beside it can transmit various control signals. Thanks to its light weight and compact figure, JINPAT miniature slip rings fit perfectly in a bomb disposal robot. With long service life and reliable performance, it is totally qualified for the job.
Aside from the slip ring mentioned above, JINPAT has many other slip ring type. As for military application, JINPAT also has high standard and precision slip ring solutions. Contact us to learn more.



Specifications
Operating Speed 0-250 rpm
Circuits 18
Voltage 240 VAC/DC
Singals  1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
18 23.5 LPM-18C


Dimension



Mechanical Slip Ring 250 Rpm 18 Circuits JINPAT Micro cap slip ring 0

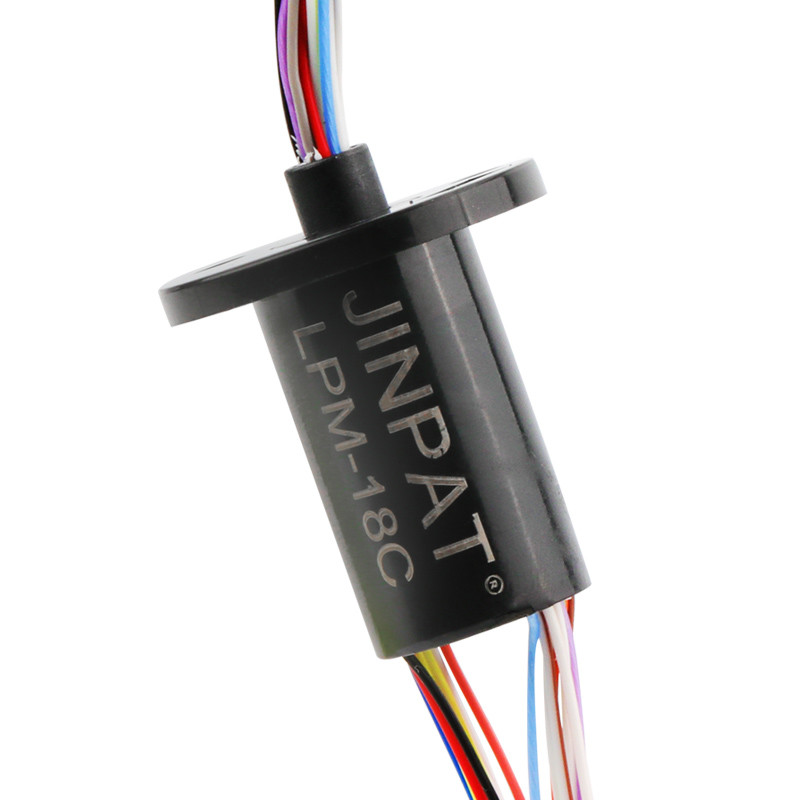

Product Display



Mechanical Slip Ring 250 Rpm 18 Circuits JINPAT Micro cap slip ring 1








































Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.

It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
