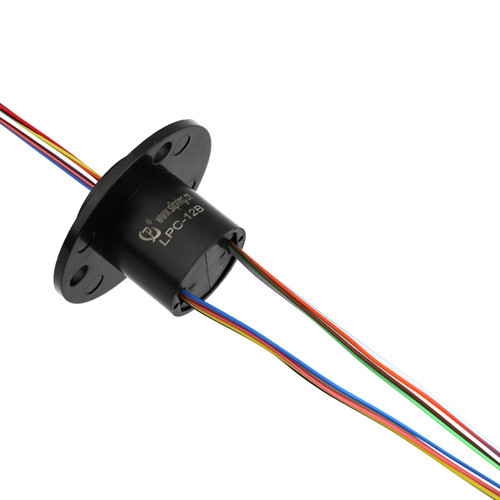

Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm, Independent design patent

  • Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm, Independent design patent
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-12B
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 12 Voltage 240 VAC/DC
Contact Material Gold To Gold Speed Up To 300 Rpm
Advantage Low Electrical Noise
High Light

240 VAC Mini Slip Ring

,

12 Circuits Mini Slip Ring

,

300 Rpm generator slip ring
Product Description

Motors Generators Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm



Description



The Slip Rings Series, thanks to its extreme compactness, guarantees a low outer speed between rings and brushes, thus to reduce material consumption so as to enhance its lifetime.This Series has been designed keeping flexibility, cost-effectiveness, and reliability in mind.

The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

 LPC-12A provides smoother running,  It is available in 6, 12 circuits model.





Electronic & Electric Mechanical
Circuits Total 12 CKT

Working Speed

 0~300rpm
Detail 12x2A Contact Material Gold to Gold
Rating Voltage 0~240V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) Lead Wire Length Stator:250±5mm Rotor:250±5mm
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

 ≤35mΩ
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP



IP40

 Note: "P" stands for power, "S" stands for signal.

LPC-12A 2.jpg

◆ The operating life of the unit depends upon temperature, rotation speed, and environment.

◆ The operating life ≥50,000,000 runs ref.


Outline Drawing



Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm, Independent design patent 1



Product display

Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm, Independent design patent 2



Product application



Mini Slip Ring 240 VAC 12 Circuits 2A 300 Rpm, Independent design patent 3
