Robotic 6 Circuits Capsule Electrical Slip Ring With Gold To Gold Contact, Customized slip ring solution
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Number Of Circuits||6 Circuits||Current Rating||2 Amps Per Circuit|
|Hole Diameter||1.5~7.0mm||Capsule Length||31 Mm|
|Lead Size||28# Silver Plated Copper||Voltage||2 Amps ,240 VAC / DC Per Circuit.|
|Applications||Urgent Illume Equipment||Characteristic||Capsule Slip Ring With Through Hole|
6 Circuits Electrical Slip Ring,
31mm Electrical Slip Ring,
31mm Slip Ring Capsule
Capsule Electrical Slip Ring,with Gold to Gold Contact Long Life Time 6 Circuits,Customized slip ring solution
The capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Using a 90-degree V-groove ring design for each ring provides smoother running, lower torque low contact wear rates than competitive slip ring. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

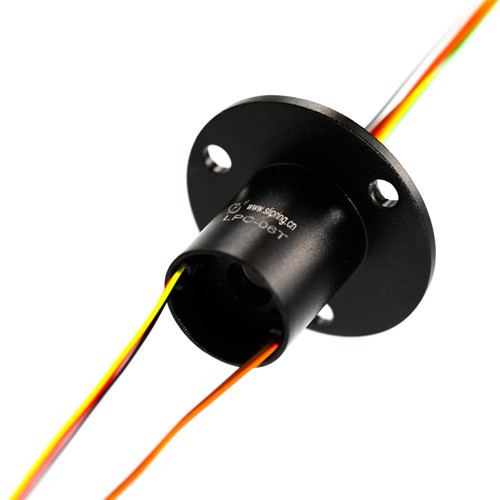

The LPC-06T slip ring capsule precision module provides long-time maintenance-free operation (no cleaning or lubrication required ) Compact design allows tremendous flexibility in dealing with system size restrictions. And signal and power can be transmitted simultaneously.
|Electronic & Electric||Mechanical|
|Contact Material||Gold to Gold|
|Dielectric Strength||≥500VAC@50Hz(P) ≥100VAC@50Hz(S)||Housing Material||Aluminum Alloy|
|Insulation Resistance||≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)||Lead Wire Length||Stator:250±5mm Rotor:250±5mm|
|Note: "P" stands for power, "S" stands for signal.|
- 6 circuits models
- 2 amps, 240VAC/DC per circuit.
- Speeds up to 200 rpm continuously
- Maintenance free and durable
- Electrical noise: less than 10m
- Compatible with data bus protocols
- Sealed units are also available
- Quick shipment and good after-sales severs
- Flexible, color-coded, silver-plated, insulated lead wires
- High quality and inexpensive
- Precision rotary table
- Turntable centrifuge
- Small wind turbine generator
- High definition camera, CTV pan/tilt camera mounts
- Medical equipment, Shadowless lamp, CT machine
- Steering wheel racing simulation
- Robotics, rotary sensors, urgent illume equipment
- Small-scale excavator
- Manufacturing and process control equipment
- Electrical test equipment
- Aviation, military, instrument, medical equipment
The operational life of the unit depends upon temperature, rotation speed, and environment
Operational life ≥50,000,000 runs ref
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
