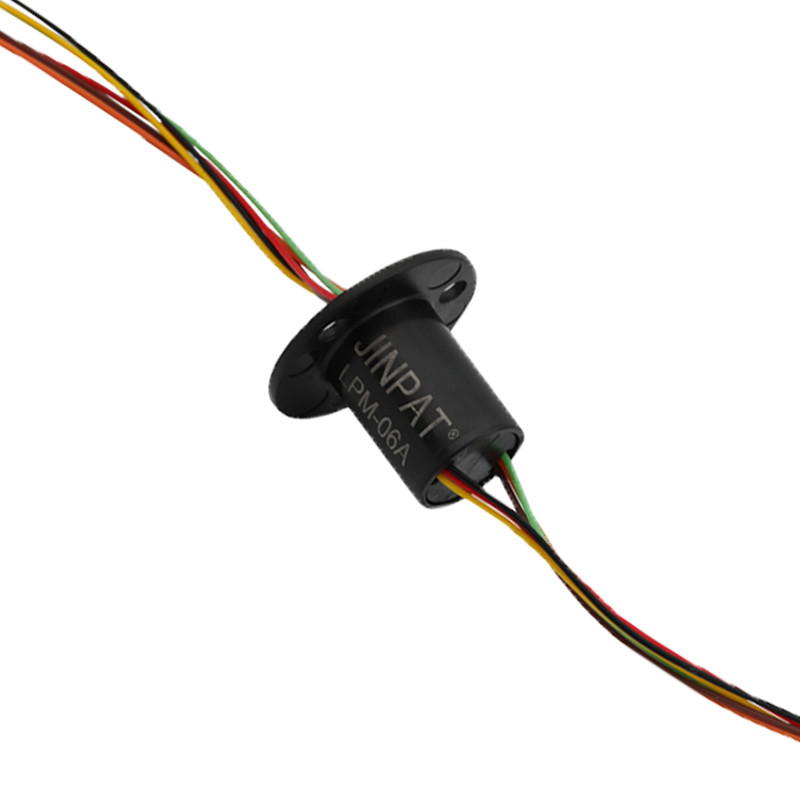

Mini Capsule Slip Rings 6 Circuit 2A IP40 300 RPM

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-06A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Speed 0~300rpm Ciruits Total 6CKT
Protection Grade IP40 Material RoHS Compliant
Type Mini Slip Ring Application Rolling Machine,Amusement Equipment
Rating Voltage 110VAC/DC
High Light

2A Mini Capsule Slip Rings

,

RoHS Capsule Slip Rings

,

300 RPM Mini Slip Rings

Product Description

UL FCC RoHS 2A Mini Capsule Slip Rings 6 Circuit IP40 300 RPM

LPM-06A Miniature Capsule Slip Rings

The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.



Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~300rpm
Detail

6X1A(You can go through 2A

under certain circumstances )

Contact Material Gold to Gold
Rating Voltage 110VAC/DC Housing Material Engineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor: 250士5mm

Insulation Resistance

≥500MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ
35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P" stands dor power, "S" stands for signal





LPM-06A -Outline Drawing
