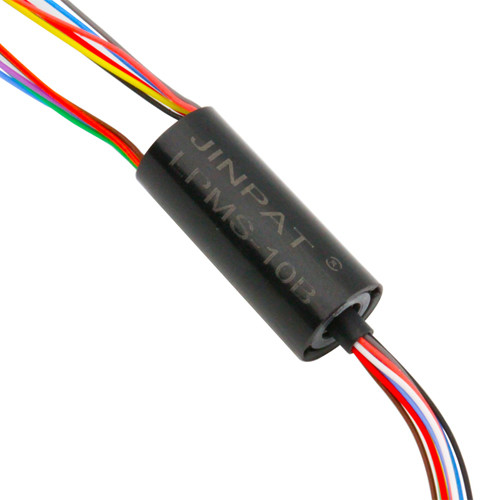

Automation Equipment IP40 Micro Slip Ring 10 Circuits 1A

  • Automation Equipment IP40 Micro Slip Ring 10 Circuits 1A
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPMS-10B
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 10 Voltage 240 VAC/DC
Contact Material Precious Metals Housing Material Engineering Plastic
Feature Stable Performance Application CCTV Pan / Tilt Camera Mounts
High Light

IP40 Micro Slip Ring

,

240VAC Micro Slip Ring

,

240VAC slip ring capsule
Product Description

Automation Equipment IP40 Micro Slip Ring 10 Circuits 1 Amp



Description



This series of product is 10 model. It uses precious metals and transmits 240 VAC/DC voltage.

The LPMS-10B super miniature slip ring is a standard, Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



This slip ring product adopts unique fiber coating technique that contributes to its low electrical noise and low wear. Besides, it also takes up US military class gold-plated surface processing technique and therefore ensure a long product life of the slip ring. It can transmit up to 30 kinds of signals like USB, HDMI, SDI, Ethernet and RS422, etc. while enabling 360-degree rotation. Customers can choose slip rings of various sizes according to their own needs.









LPMS-10B SY.jpg



Electronic & Electruc Mechanical
Circuits Total 10 CKT Working Speed 0~300rpm
Detail 10X1A Contact Material Gold to Gold
Rating Voltage 48V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥100VAC@50Hz Lead Wire Length

Stator: 250士5mm

Rotor: 250士5mm
Insulation Resistance ≥50MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

≤35mΩ


35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P" stands dor power, "S" stands for signal





Product application(tilt camera mounts)



Automation Equipment IP40 Micro Slip Ring 10 Circuits 1A 1
