Professional Micro Cap Slip Rings 12 Circuits 300 RPM IP40

  • Professional Micro Cap Slip Rings 12 Circuits 300 RPM IP40
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-12A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 0-300 Rpm Number Of Circuits 12
Voltage 240 VAC/DC Current Rating 2 Amps Per Circuit
Temperature Range -20℃ To +60℃ Contact Material Gold To Gold
Application Urgent Illumination Equipment Feature Application LED Lights Billboard
High Light

12 Circuits Electrical Slip Ring

,

300 RPM IP40 Electrical Slip Ring

,

IP40 electrical rotary joint
Product Description

Compact Electrical Slip Ring,12 Circuits 300RPM IP40 for LED Lights Billboard



Description

This slip ring product adopts unique fiber coating technique that contributes to its low electrical noise and low wear. Besides, it also takes up US military class gold-plated surface processing technique and therefore ensure a long product life of the slip ring. It can transmit up to 30 kinds of signals like USB, HDMI, SDI, Ethernet and RS422, etc. while enabling 360-degree rotation. Customers can choose slip rings of various sizes according to their own needs.







LPMS-12A SY.jpg



Electronic & Electruc Mechanical
Circuits Total 12 CKT Working Speed 0~300rpm
Detail 12X1A Contact Material Gold to Gold
Rating Voltage 48V AC/DC Housing Material Engineering plastics
Dielectric Strength ≥100VAC@50Hz Lead Wire Length

Stator: 250士5mm

Rotor: 250士5mm
Insulation Resistance ≥50MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

≤35mΩ


35mEnvironment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity ≤60%RH Other /
IP IP40 Note:"P" stands dor power, "S" stands for signal





Product display

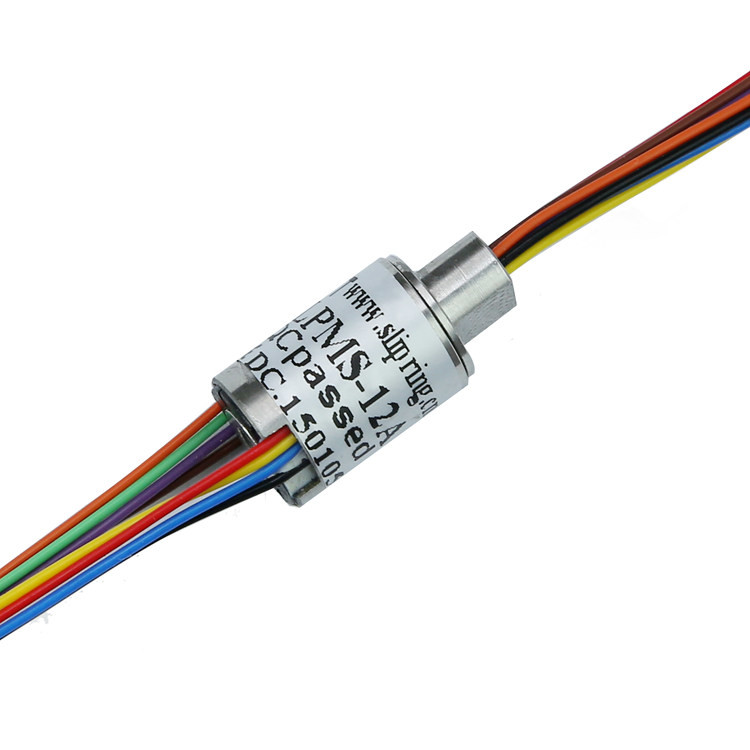

Professional Micro Cap Slip Rings 12 Circuits 300 RPM IP40 1

Company test machine



Professional Micro Cap Slip Rings 12 Circuits 300 RPM IP40 2
