IP40 JINPAT Optical Slip Ring High Frequency Rotary Joints LPHF-01K
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency Range | DC-30MHz | VSWR,max | 1.2 |
|---|---|---|---|
| Name | Optical Slip Ring | Insertion Loss,Max. | 0.5dB |
| Insulator Material | PTFE | IP Protection Level | IP40 |
| Marking | Laser Marking | ||
| High Light | JINPAT Optical Slip Ring,IP40 Optical Slip Ring,IP40 High Frequency Rotary Joints |
||
Product Description

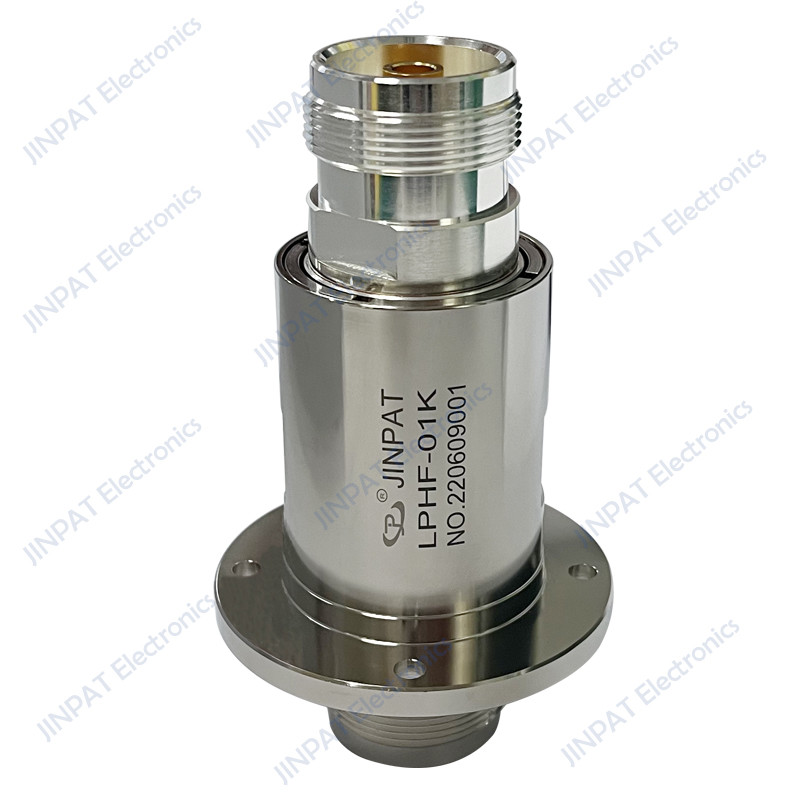

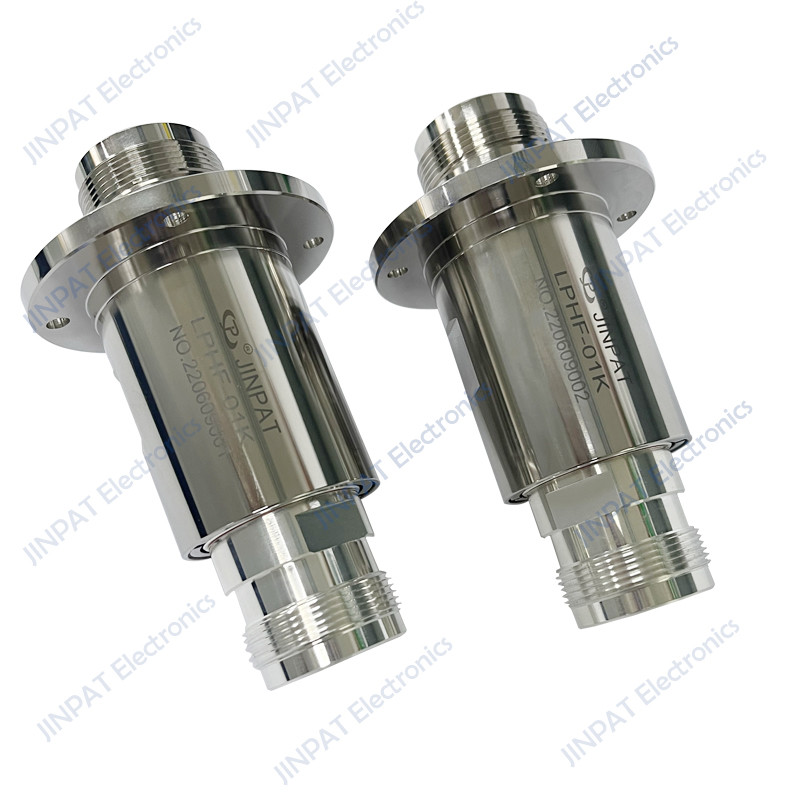

IP40 JINPAT Optical Slip Ring High Frequency Rotary Joints LPHF-01K
High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints.They are also known as high frequency slip rings and radio frequency slip rings.High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals.The slip ring series support single channel and multi channels transmission of high frequency signals.There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals,communication signals, power signals and fluid medium.
| Specifications | |||
| Interface Tpe | L36-F(50Ω) | Axial Load On Interface,Max | ±8N |
| Frequenc Range | DC-30MHz | Radial Load On Interface,Max. | ±8N |
| VSWR,Max. | 1.20 | Bod Material | Brass |
| VSWR WOW | 0.1 | Insulator Material | PTFE |
| Insertion Loss,Max. | 0.5dB | Marking | Laser Marking |
| Insertion Loss WOW | 0.1dB | Weight,approx | 2.7KG |
| Peak Power,Max. | 20KW | IP Protection Level | IP40 |
| Average Power,Max. | 15KW | Operation Temperature | -45~+80°C |
| Phase WOW,Max | 3° | Storage Temperature | -55~+85°C |
| Rotating Speed,Max. | 100rpm | Humidit(Operation) | 95％ |
| Life Time,Min | 5 Million Revolutions | Humidit(St) | 95％ |
| Starting Torque | 30Ncm Max | Continuous Rotational Torque | 30Ncm Max |
