IP40 High Frequency Slip Ring 30rpm For Emergency Lighting Equipment / Robots
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rotating Speed,Max. | 30rpm | Life Time,Min | 5 Million Revolutions |
|---|---|---|---|
| Isolation,min | 50dB | Body Material | Alumillion Revolutions |
| Case Surface Finish | Chromate Conversion Coat | Weight,approx | 0.5KG |
| IP Protection Level | IP40 | Operation Temperature | -55~+80°C |
| Highlight | IP40 High frequency slip ring,High frequency slip ring 30rpm,robots High frequency slip ring |
||
Product Description
Single Channel Slip Ring/ Rotary Joint Lightweight with Beryllium Copper Contact for Vehicle Turrets
Description

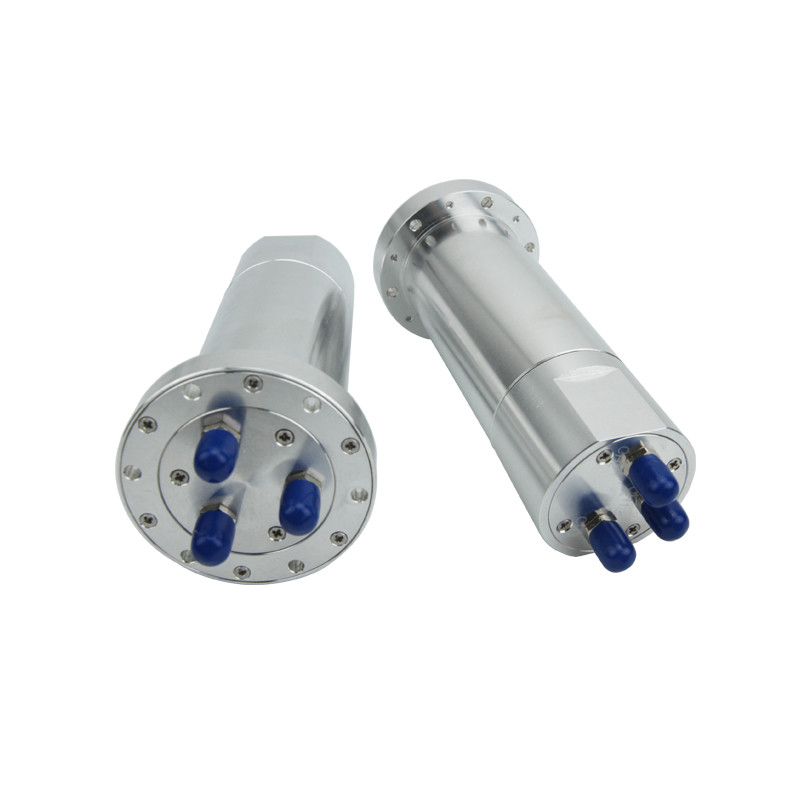

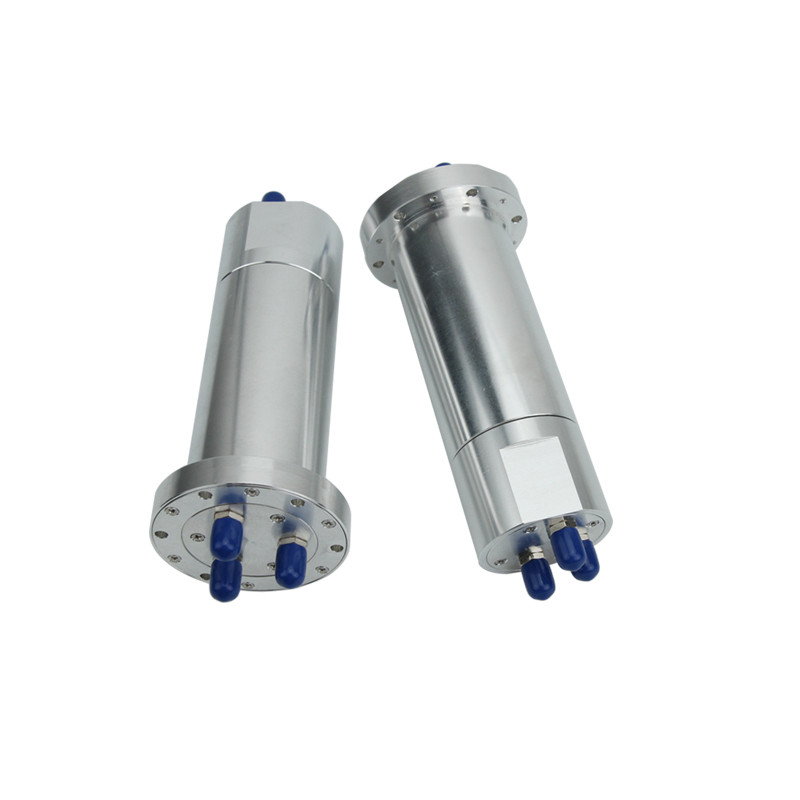

LPFH-03A 3-channel high-frequency rotary joint, with 3-in 3-out coaxial rotary joint, the highest frequency of each channel is 2Ghz,
high-frequency slip ring is a product specially developed for high-
speed serial digital signal or analog signal transmission. Optional: Mixable power supply power,
24V control signal, communication signal, power supply, fluid air water and other media mixing slip ring.
High-frequency waveguide signals are suitable for occasions that cannot be interrupted:
such as various military radars, shipborne satellite communication devices, vehicle satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radars Antennas,
medical systems, video surveillance systems, national or international security systems, submarine operation systems,
emergency lighting equipment, robots, exhibition/display equipment, etc.
| Specifications | |||||
| Channel | CH1 | CH2 | CH3 | Starting Torque | 0.6Nm@room temperature |
| Interface Tpe | SMA-K(50Ω) | SMA-K(50Ω) | SMA-K(50Ω) | Continuous Rotational Torque | 0.6Nm@room temperature |
| Type | I | I | I | Rotating Speed,Max. | 30rpm |
| Frequenc Range | DC-2GHz | DC-2GHz | DC-2GHz | Life Time,Min | 5 million Revolutions |
| Average Power,Max. | 30W@1GHz | 10W@1GHz | 10W@1GHz | Body Material | Alumillion Revolutions |
| VSWR,Max | 1.5 | 1.5 | 1.5 | Case surface finish | Chromate conversion coat |
| Weight,approx | 0.5KG | ||||
| VSWR WOW | 0.2 | 0.2 | 0.2 | IP Protection Level | IP40 |
| Insertion Loss,Max. | 1.0dB | 1.0dB | 1.0dB | Operation Temperature | -55~+80°C |
|
Insertion Loss WOW |
0.15dB | 0.15dB | 0.15dB | Storage Temperature | -55~+85°C |
| Isolation,min | 50dB |
Humidity (Operation) |
95％ | ||
| Humidity(Storage) | 95％ | ||||
