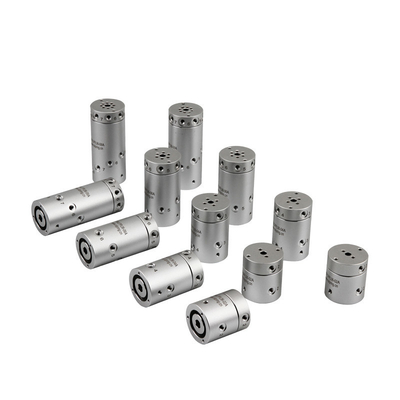

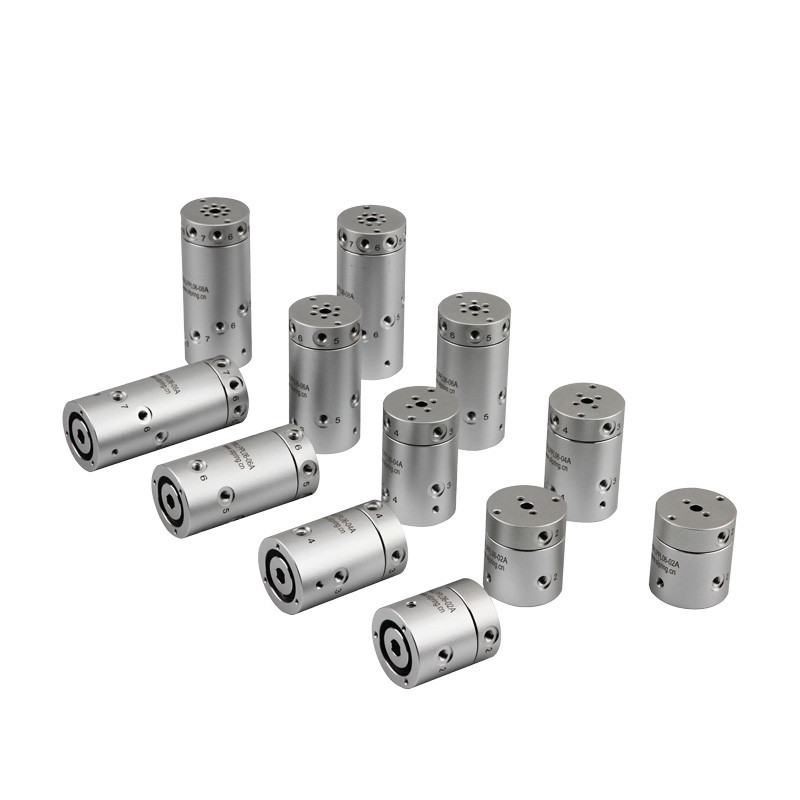

SS304 240VAC 2A Electrical Rotary Union 360 Degrees Light Weight Low Torque

  • SS304 240VAC 2A Electrical Rotary Union 360 Degrees Light Weight Low Torque
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPPL06-02A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 1~36 Voltage 240VAC/DC
Insulation Resistance 100MΩ@500VDC Life 10 Million (can Be Customized)
Feature Light Weight Rotating Speed 0~5rpm
Highlight

SS304 Electrical Rotary Union

,

LPP Electrical Rotary Union

,

240VAC Rotary Union Joint
Product Description

Brief Introduction


The LPP rotary unions can perform rotation of 360 degrees. The medium includes inert gas such as compressed air, steam, vacuum, nitrogen, hydrogen, etc. It can integrate slip ring to transport various control signals. The sealing surface and sealing ring are made of special materials, with the advantages of wear resistance, long life, corrosion resistance, and no leakage. Customers can install LPP rotary unions independently according to the application environment.

Features
  • Continuable medium: compressed air, nitrogen, and other inert gases;
  • Small size, light weight, low torque
  • Integrated power, switching signal, Ethernet, USB, industrial bus, sensor and other signals;
  • Customized rotary joint parameters and integrated slip ring can be customized according to customer require-ments;
The joint and pipe diameter can be customized according to customer requirements;

Optional
  • Inner diameter & Outer diameter
  • Number of circuits
  • Current & Voltage
  • Wire length
  • Housing material and
  • color
  • Protection level
  • Signal and power can be transmitted separately or in combination



Electrical & Electroni Mechanical Enviromental
Number of
circuits
 11CKT Rotating speed 0~5rpm Temperature T3
Current 6x200A+1xPE+5x63A
Contact
material
Precious metal/
copper graphite
 Humidity ≤60%RH
Voltage 440VAC
Housing
material
 Stainless steel 304
Protection
Grade
 65
Dielectric
strength
≥2500VAC@60Hz
≥1000VAC@50Hz
 Wire type 70mm2/AWG6#
Others
Insulation
resistance
≥500MΩ@1000VDC
≥500MΩ@500VDC
 Wire length
/

 Life span Can be customized





SS304 240VAC 2A Electrical Rotary Union 360 Degrees Light Weight Low Torque 0
