8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal

  • 8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPMS-08A
Minimum Order Quantity 1
Price $16.50

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 8 Current Rating 1A Per Wire
Contact Material Precious Metal Operating Speed 0-300 Rpm
Voltage 240 VAC/DC Temperature Range -20℃ To +60℃
Dynamic Resistance Fluctuation ≤35mΩ Lead Length 250 Mm
Working Humidity 60% RH Or Higher Housing Material Factory Plastic
Electrical Noise 1mΩMin Contact Type Gold-Gold
Wire Type Silver-plated Rotation 360° Continuous
Speed 300 Rpm Continuous
Highlight

8 circuit capsule slip ring

,

1A 240VAC/DC slip ring

,

precious metal slip ring
Product Description
LPMS-08A Capsule Slip Ring with USB Compatibility
Premium Quality at Competitive Pricing
Bargain Price Only in Alibaba
Product Overview
The LPMS-08A slip ring is an electromechanical device that enables the transmission of power and electrical signals between stationary and rotating structures. Ideal for any system requiring rotation while maintaining electrical connections.
Technical Specifications
Operating Speed 0-300 rpm
Circuits 8
Voltage 240 VAC/DC
Temperature Range -20℃ to +60℃
Contact Material Precious metal
Dynamic Resistance Fluctuation ≤35mΩ
Lead Length Standard 250 mm (9.843inch)
Working Humidity 60% RH or higher
Housing Material Factory plastic
Electrical Noise 1mΩMin
Key Features
  • 8 circuit configuration with 1 amp per circuit capacity
  • Precision assembly for exceptional rotational lifespan
  • Continuous operation up to 300 rpm
  • Gold-Gold contact points for reliable connectivity
  • Color-coded, silver-plated lead wires for easy installation
  • Excellent performance with low-level control signals
Product Advantages
  • Space-saving compact design for constrained installations
  • Low-noise operation with smooth rotation
  • 360° continuous rotation capability
  • Customizable with special components
  • Expedited shipping available for urgent requirements
Product Dimensions
8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal 0

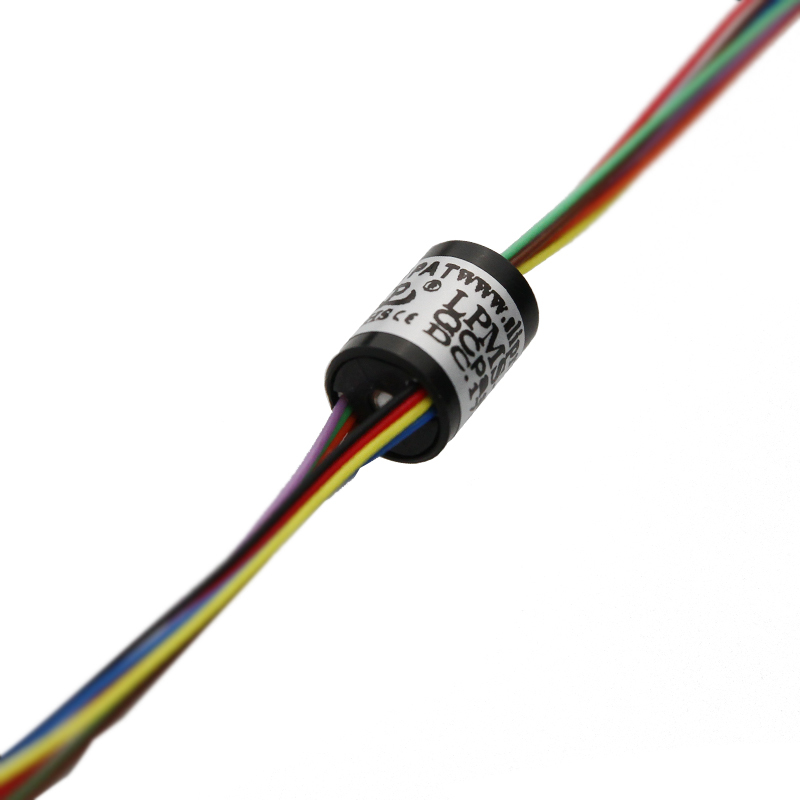

Product Display
8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal 1
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward.
  • 12,000+ square meter facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise
  • Holder of 69 patents for innovative solutions
  • Global partnerships with renowned enterprises
  • 10,000+ successful designs across multiple industries
  • Established in 1996 with 20+ years of R&D experience
  • Fast delivery on standard and custom solutions
8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal 2
Typical Applications
8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal 3
Frequently Asked Questions
1. What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
2. What is a slip ring?
A slip ring enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving mechanical performance.
3. What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Ring Solutions
  • Large Volume Production
4. How do I choose a slip ring?
Selection requires details about your application's circuits, voltage/amperage requirements, operating speed, and mounting configuration. Contact our engineers for assistance.
5. Do you offer custom slip rings?
Yes, our engineering team develops tailored solutions for unique requirements. Contact us to discuss your specific needs.
