8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuit Number | 8 | Current Rating | 1A |
|---|---|---|---|
| Voltage | 48 VAC/DC | Working Speed | 0~300 Rpm |
| Working Temperature | -20~+60℃ | Electrical Noise | ≤15mΩ |
| Contact Material | Precious Metal | Wire Size | φ0.5 30# Silver Plated Teflon UL |
| Lead Wire Length | Rotor:250±5mm; Stator:250±5mm | Protection Grade | IP54 |
| Style | Capsule Slip Ring | Type | Electronic Accessories |
| Rotation Interface | Gold Contacts | Wire Color | Color-coded |
| Outline Dimensions | Refer To Drawing | ||
| Highlight | 8-wire capsule slip ring,1A 48V slip ring,300 RPM capsule slip ring |
||
Product Description
High-Speed 8 Wires Micro Electrical Slip Ring for 300 RPM
Premium Solution for High-Speed Dome Cameras
Bargain Price Only in Alibaba
Product Description

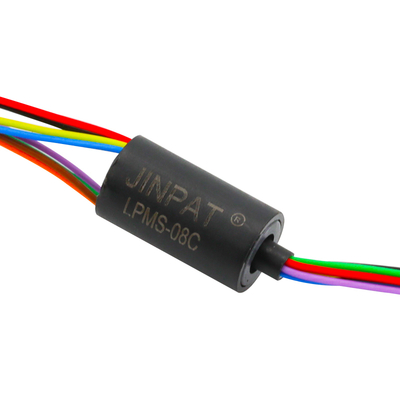

The LPMS-08C super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
| Parameter | Value |
|---|---|
| Circuits | 8 |
| Current Rating | 1A |
| Voltage | 48 VAC/DC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Wire Size | φ0.5 30# silver plated Teflon UL |
| Lead Wire Length | Rotor:250±5mm; Stator:250±5mm |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Main Applications
- Electric devices
- Smart devices
- Industrial machinery
- LED industry
- Medical equipment
- High-Speed dome cameras
Outline Drawing
Product Display
Our Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
Providing free custom slip rings solutions, creating propulsion for your technology
- 12,000 square meter plant with over 500 employees
- National High and New Technology award winner with 69 patents
- Long-term partnerships with global enterprises
- Over 10,000 successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom solutions for various equipment requirements
- Fast delivery service
Typical Application
Company Information
FAQ
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
A slip ring is an electromechanical device that allows transmission of power and electrical signals between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
- Electrical Slip rings (capsule, through-hole, miniature, etc)
- Signal Slip rings (USB2.0/USB3.0, fiber optic rotary joint, high frequency, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
5. Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom requirements.
