JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots

  • JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots
  • JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPC-36A-0215-01S（ARX-012）
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Supply Ability 100 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 1 Circuit*Video Signal 2circuits*15A Rating Voltage 0~240V AC/DC
Rotating Speed 0~300rpm Contact Resistance Fluctuation Value ≤35mΩ(50rpm)
Wire Length(mm) Rotor/Stato:r500±5mm Contact Material Gold To Gold
Housing Material Engineering Plastics Working Temperature -20°C~+60°C
Working Humidity ≤60%RH Protection Level(IP) IP40
Highlight

2 Circuits Rotary Slip Ring

,

0-100 rpm Operating Speed Slip Ring

,

0~240V AC/DC Electrical Slip Ring
Product Description

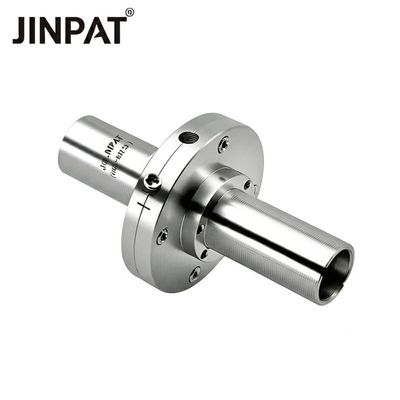

JINPAT LPC-36A-0215-01S（ARX-012） Rotary Slip Ring for Pipeline Robot
Product Overview

Pipeline Robot Slip Ring - LPC-36A-0215-01S (ARX-012)

JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots 0
Technical Specifications
Attribute Value
Circuits 1 circuit*Video signal 2circuits*15A
Rating Voltage 0~240V AC/DC
Rotating Speed 0~300rpm
Contact resistance fluctuation value ≤35mΩ(50rpm)
Wire length(mm) Rotor/Stator: 500±5mm
Contact Material Gold To Gold
Housing Material Engineering Plastics
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP Rating IP40
Key Features & Advantages

This slip ring features reliable electrical connections for stable power and signal transmission. Available in multiple types and specifications, it offers excellent performance and long service life under demanding conditions.

Structural Features
  • Unique electrical connection capabilities, enabling energy and signal transmission
  • Diverse types and specifications
  • Excellent performance
  • Wide range of applications

With its versatile design, this slip ring is ideal for various industrial applications — particularly pipeline inspection robots, where compact size and high reliability are essential.

For more details about this slip ring product, please contact JINPAT. We provide customized solutions to meet your specific requirements.
