High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating

  • High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating
Place of Origin Guangdong, China
Brand Name JINPAT
Model Number LPKS025-085-0205-08S
Minimum Order Quantity 1
Price $160

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 2 Circuits Current Rating 5A Per Circuit
Voltage Rating 220VDC/AC Contact Material Precious Metal
Inner Diameter Φ25mm Working Speed 0~300rpm
Dielectric Strength ≥300VDC@50Hz(Current), ≥100VDC@50Hz(signal) Insulation Resistance 100MΩ@300VDC(Current), 100MΩ@100VDC(signal)
Housing Material FR-4 Wire Length Stator Wire: 300mm, Rotor Wire: 300mm
Operating Temperature -20°C~+60°C Installation Method Fixed With M2 Screws
Rotating Speed High Thickness 6mm
Signal Transmission 360° Rotation
Highlight

5A Current Rating Pancake Slip Ring

,

25mm Hole Size Flat Slip Ring

,

220VDC/AC Voltage Rating LPK Series Slip Ring
Product Description

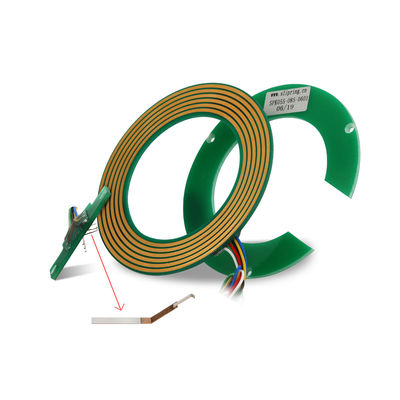

High-Speed 5A Flat Slip Ring with 2 Circuits 25mm Hole Size
Compact Pancake Slip Ring for Current and Signal Transmission
Bargain Price Only in Alibaba
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The innovative copper ring and brush contact configuration around a central hole maximizes space efficiency.
Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Exceptionally low physical noise operation
  • Continuous 360° power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-installed photoelectric encoder
  • Choice of solid or hollow shaft options
  • Fast delivery service
  • Custom engineering solutions available
Technical Specifications
Electronic & Electrical Mechanical
Circuits: 2 circuits × 5A + 8 signal circuits Working Speed: 0-300rpm
Inner Diameter: Φ25mm Contact Material: Nobel Metal
Working Voltage: 220VDC/AC Housing Material: FR-4
Dielectric Strength: ≥300VDC@50Hz (Current) ≥100VDC@50Hz (Signal) Wire Length: Stator/Rotor 300mm each
Insulation: 100MΩ@300VDC (Current) 100MΩ@100VDC (Signal)
Environment Remarks
Temperature Range: -20°C to +60°C Installation: Fixed with M2 screws on customer's flange
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 0
Primary Applications
  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 1 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 2 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 3 High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating 4
