40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine

  • 40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
Place of Origin China
Brand Name JINPAT
Certification ISO/CE/RoHS/UL
Model Number LPKS040-0501
Minimum Order Quantity 10pcs
Price Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 5circuits Voltage Rating 24V
Current Rating 1A Per Circuit Contact Material Precious Metal
Working Speed 0~150rpm Inner Diameter Φ40mm
Dielectric Strength ≥300V@50Hz Housing Material FR-4
Insulation Resistance 100MΩ@100VDC Wire Length Stator Wire:300mm Rotor Wire:300mm
Operating Temperature -20°C~+60°C Humidity ≤60%RH
Rotating Speed High Installation Method PCB Board Fixed On Flange
Thickness 6mm
Highlight

40 mm Inner Diameter Pancake Slip Ring

,

5 Circuits Flat Slip Ring

,

24V Voltage Rating LPK Series Slip Ring
Product Description
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview

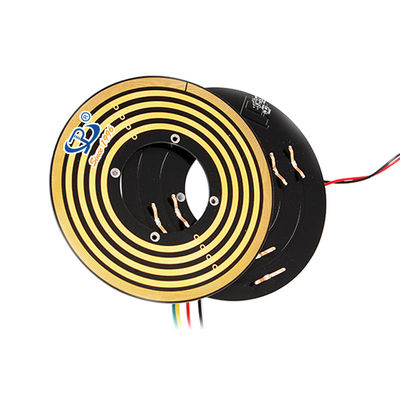

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight construction
  • Exceptionally low physical noise operation
  • Continuous 360° rotation for power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-configured photoelectric encoder option
  • Available with solid or hollow shaft configurations
  • Fast delivery times
  • Custom engineering solutions available
Technical Specifications
Electrical Specifications Mechanical Specifications
Circuits 5 circuits × 1A Working Speed 0-150 rpm
Working Voltage 24V Contact Material Nobel Metal
Dielectric Strength ≥300V@50Hz Housing Material FR-4
Insulation 100MΩ@100VDC Wire Length Stator/Rotor: 300mm each
Environmental Specifications Additional Information
Temperature Range -20°C to +60°C Installation Method PCB board mounts to customer's flange
Humidity ≤60% RH Inner Diameter Φ40mm
Industrial Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display machinery
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
