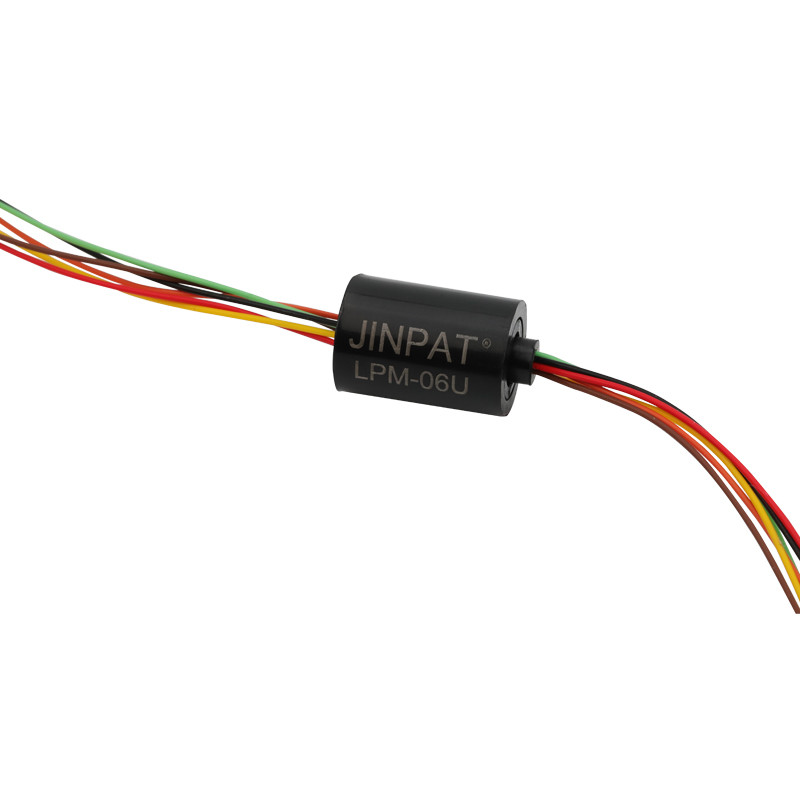

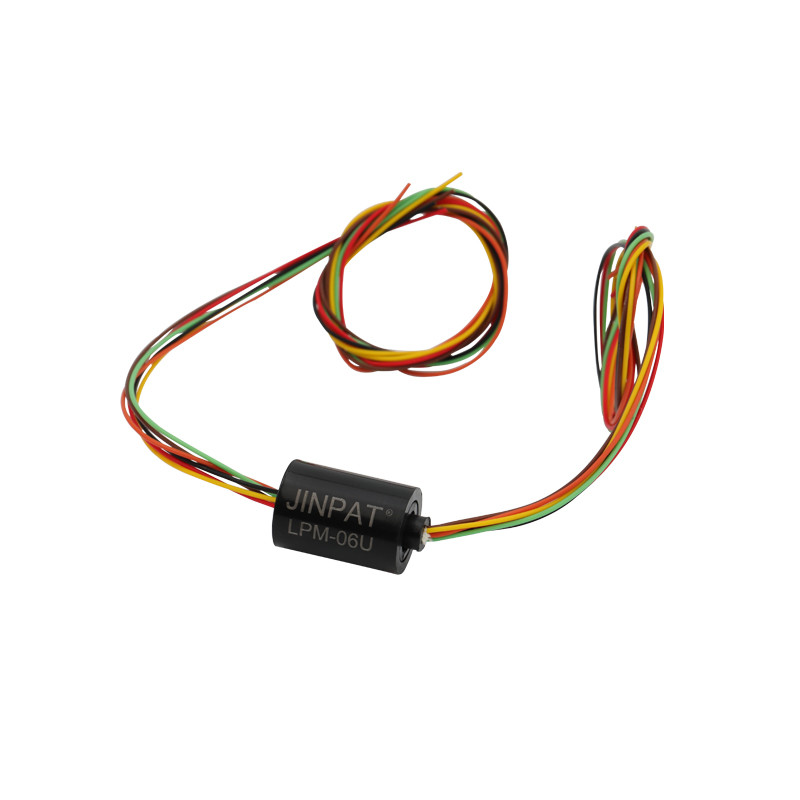

Capsule Slip Ring 6 Circuit Low Resistance In CT Machine

  • Capsule Slip Ring 6 Circuit Low Resistance In CT Machine
  • Capsule Slip Ring 6 Circuit Low Resistance In CT Machine
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-6U
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 6 Operating Speed 0-300 Rpm
Voltage Rating 240 VAC/DC Current Rating 2 Amps Per Circuit
Application CT Slip Rings Working Temperature -20℃ To +60℃
High Light

compact slip ring

,

small slip ring
Product Description

Gold Contacts Micro Capsule Slip Ring Low Resistance In CT Machine



Quick Detail



The LPM-06U can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The LPM-06U is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.

It’s the pivotal apparatus of electric test instrument, various precision rotary worktable,  manufacture and process control instrument.



Specifications



Specifications
Operating Speed 0-300 rpm
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
6 18.2 LPM-06U



Dimensions

Capsule Slip Ring 6 Circuit Low Resistance In CT Machine 0

Product application(home robotics)



Capsule Slip Ring 6 Circuit Low Resistance In CT Machine 1
