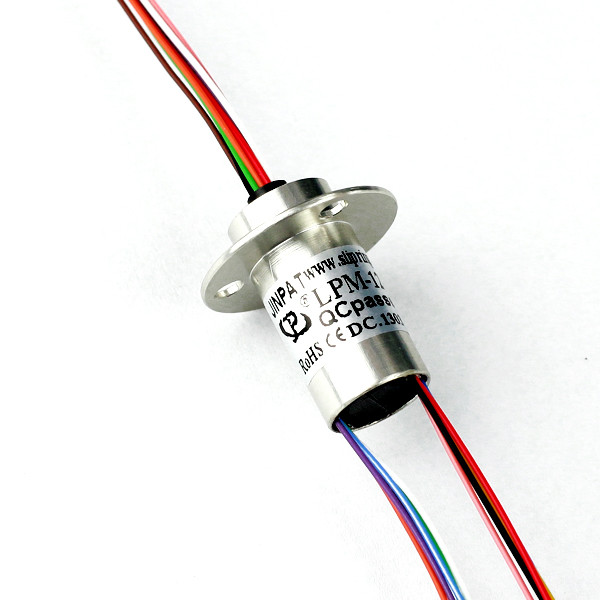

Small Capsule Slip Ring 12 Circuits

  • Small Capsule Slip Ring 12 Circuits
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-12M
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 12 Contact Material Gold To Gold
Lengths 26.43 Mm Operating Speed 300 Rpm
Operating Life ≥50,000,000 Runs Ref Voltage 240 VAC/DC
Application Case Rotary Sensors Circuit Resistance 100 MΩ
High Light

compact slip ring

,

mini slip ring
Product Description

12 Circuits Small Slip Ring with Over 50 Million Revolutions Long Life Integrated structure design



Description



A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and/or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.



The LPC-12E compact capsule electrical slip ring offers a low torque design with gold-on-gold contacts provides smoother running, lower torque and lower electrical noise than competitive slip rings.



This unit is ideal for use where mounting space is limited and critical, without sacrificing current handling capability. It can incorporate up to 12 circuits, each rated at 2 amps. The color-coded, versatile lead wires are best used for transferring digital and analog signals.





Specifications
Operating Speed 0-300 rpm
Number of Circuits 12
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Lengths Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 1mΩ Min

















































Design Drawing



Small Capsule Slip Ring 12 Circuits 0



Application Picture

Small Capsule Slip Ring 12 Circuits 1
