Capsule Slip Ring 8 Circuits LPC-08A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 8 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Current Rating | 2 Amps Per Circuit | Application Case | Medical CT Machine \ Radar Antenna |
| Contact Material | Gold To Gold | Length | 21.40 Mm |
| High Light | compact slip ring,mini slip ring |
||
Product Description

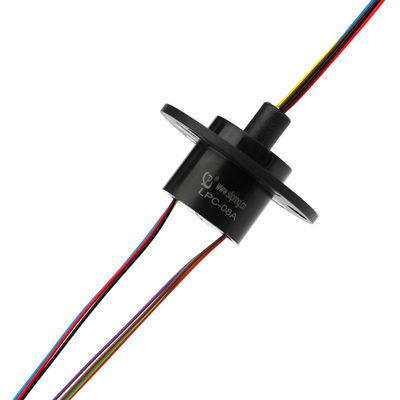

8 Circuits Capsule with Slip Ring Working Speed Up to 300rpm for Radar Antenna Applied with Flange
Description
The LPC-08A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connection. It provides smoother running, lower torque and lower electrical noise than competitive slip rings.
The slip ring is made of brushes, conductive rings, insulation materials, binding materials, a supporting frame, precision bearings and housing etc. The brushes which are made of precious metal are in two-point contact to the ring.The LPC-08A used in any electromechanical system that requires unrestrained, continuous rotation while transmitting power and /or data from a stationary to a rotating structure.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
- The operating life of the unit depends upon temperature, rotation speed, and environment.
- The operating life ≥50,000,000 runs ref.
Outline Drawing
Application picture
Company introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.
